Water Input | : | 1" |
|
Working Pressure | : | 2 - 4 atm |
|
Water Requirement | : | 2.8 -8.6 m³/h |
|
Knockers | : | 6 - 8 - 10 mm |
|
Body Angle | : | 27° |
|
Box Dimension | : | 0.250 cm X 0.200 cm |
|
Weight | : | 0.55 kg |
|
Shooting Range | : | 15 - 21 m |
| Circle | : | Full & Part Circle |
|
|
Water Input | : | 1" |
|
|
Working Pressure | : | 2 - 4 atm |
|
|
Water Requirement | : | 2.8 -8.6 m³/h |
|
|
Knockers | : | 6 - 8 - 10 mm |
|
|
Body Angle | : | 30° |
|
|
Box Dimension | : | 0.250 cm X 0.200 cm |
|
|
Weight | : | 0.55 kg |
|
|
Shooting Range | : | 15 - 21 m |
| Circle | : | Full & Part Circle |
|
|
Water Input | : | 1.5" |
|
|
Working Pressure | : | 2 - 5 atm |
|
|
Water Requirement | : | 6.5 - 18.8 m³ |
|
|
Knockers | : | 10, 12, 14 mm |
|
|
Body Angle | : | 30° |
|
|
Box Dimension | : | 25x40x6 cm |
|
|
Weight | : | 1.5 kg |
|
|
Shooting Range | : | 19 - 28 m |
| Circle | : | FC & PC |
|
|
Water Input | : | 1.5" |
|
|
Working Pressure | : | 2 - 6 atm |
|
|
Water Requirement | : | 10.1 - 23.5 m³ |
|
|
Knockers | : | 14, 16, 18 mm |
|
|
Body Angle | : | 27° |
|
|
Box Dimension | : | 45x35x12 cm |
|
|
Weight | : | 2.5 kg |
|
|
Shooting Range | : | 20 - 35 m |
| Circle | : | FC & PC |
|
|
Water Input | : | 1.5" |
|
|
Working Pressure | : | 2 - 6 atm |
|
|
Water Requirement | : | 6 - 23.5 m³ |
|
|
Knockers | : | 8, 10, 12, 14 mm |
|
|
Body Angle | : | 27° |
|
|
Box Dimension | : | 40x25x6 cm |
|
|
Weight | : | 1.5 kg |
|
|
Shooting Range | : | 17 - 31 m |
| Circle | : | FC & PC |
|
|
Water Input | : | 2" |
|
|
Working Pressure | : | 2-6 atm |
|
|
Water Requirement | : | 10 - 57 m³ |
|
|
Knockers | : | 12, 14, 16, 18, 20, 22, 24 mm |
|
|
Body Angle | : | 25° |
|
|
Box Dimension | : | 20x20x75 cm |
|
|
Weight | : | 7,3 kg |
|
|
Shooting Range | : | 22 - 50 m |
|
|
Water Input | : | 2.5" |
|
|
Working Pressure | : | 3 - 7 atm |
|
|
Water Requirement | : | 28 - 108 m³ |
|
|
Knockers | : | 20, 22, 24, 26, 28, 30, 32 mm |
|
|
Body Angle | : | 24° |
|
|
Box Dimension | : | 24 x 24 x 106 cm |
|
|
Weight | : | 10 kg |
|
|
Shooting Range | : | 34 - 66 m |
|
|
Water Input | : | 1,5" |
|
|
Working Pressure | : | 2 - 6 atm |
|
|
Water Requirement | : | 6.5 - 32 m³ |
|
|
Knockers | : | 10, 12, 14, 16, 18 mm |
|
|
Body Angle | : | 24° |
|
|
Box Dimension | : | 21x21x71 cm |
|
|
Weight | : | 5,5 kg |
|
|
Shooting Range | : | 22 - 38 m |
|
|
Water Input | : | 2" |
|
|
Working Pressure | : | 2 - 7 atm |
|
|
Water Requirement | : | 9.4 - 61.2 m³ |
|
|
Knockers | : | 12, 14, 16, 18, 20, 22, 24 mm |
|
|
Body Angle | : | 25° |
|
|
Box Dimension | : | 20x20x89 cm |
|
|
Weight | : | 7 kg |
|
|
Shooting Range | : | 23 - 50 m |
|
|
Water Input | : | 2" |
|
|
Working Pressure | : | 2.5 - 6 atm |
|
|
Water Requirement | : | 13.2 - 57 m³ |
|
|
Knockers | : | 14, 16, 18, 20, 22, 24 mm |
|
|
Body Angle | : | 25° |
|
|
Box Dimension | : | 20x18x85 cm |
|
|
Weight | : | 6.7 kg |
|
|
Shooting Range | : | 24 - 50 m |
|
|
Water Input | : | 3" |
|
|
Working Pressure | : | 3 - 8 atm |
|
|
Water Requirement | : | 43 - 146 m³ |
|
|
Knockers | : | 25, 28, 30, 32, 34, 36 mm |
|
|
Body Angle | : | 23° |
|
|
Box Dimension | : | 20x33x130 cm |
|
|
Weight | : | 16 kg |
|
|
Shooting Range | : | 41 - 71 m |
| Free Quick Coupling | : | Yes | |
| Flanged Connected | : | Yes |
|
|
Water Input | : | 2" |
|
|
Working Pressure | : | 2 - 6 atm |
|
|
Water Requirement | : | 9.7 - 48 m³ |
|
|
Knockers | : | 12, 14, 16, 18, 20, 22, 24 mm |
|
|
Body Angle | : | 18° |
|
|
Box Dimension | : | 20x20x75 cm |
|
|
Weight | : | 7.3 kg |
|
|
Shooting Range | : | 20 - 41 m |
| Free Quick Coupling | : | Yes |
|
|
Water Input | : | 1.5" |
|
|
Working Pressure | : | 1.5 - 4 atm |
|
|
Water Requirement | : | 3 - 10.7 m³ |
|
|
Knockers | : | 8, 10, 12 mm |
|
|
Body Angle | : | 30° |
|
|
Box Dimension | : | 25x40x6 cm |
|
|
Weight | : | 0.85 kg |
|
|
Shooting Range | : | 16 - 26 m |
| Circle | : | FC & PC |
 |

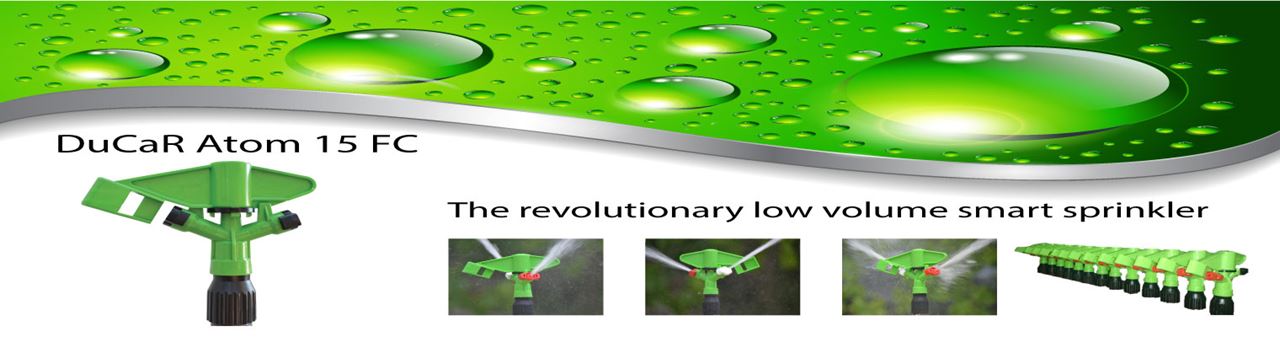

DuCaR Atom 15FC New generation, low volume, plastic, impact sprinkler with SWITCHABLE arm
The atom 15 FC sprinklers, small and medium discharge, operate over a full 360 degrees. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineered plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.
Comes with 3 NOZZLES (End Plug - 4.5 - 5.5 mm) and a Jet Breaker. |
