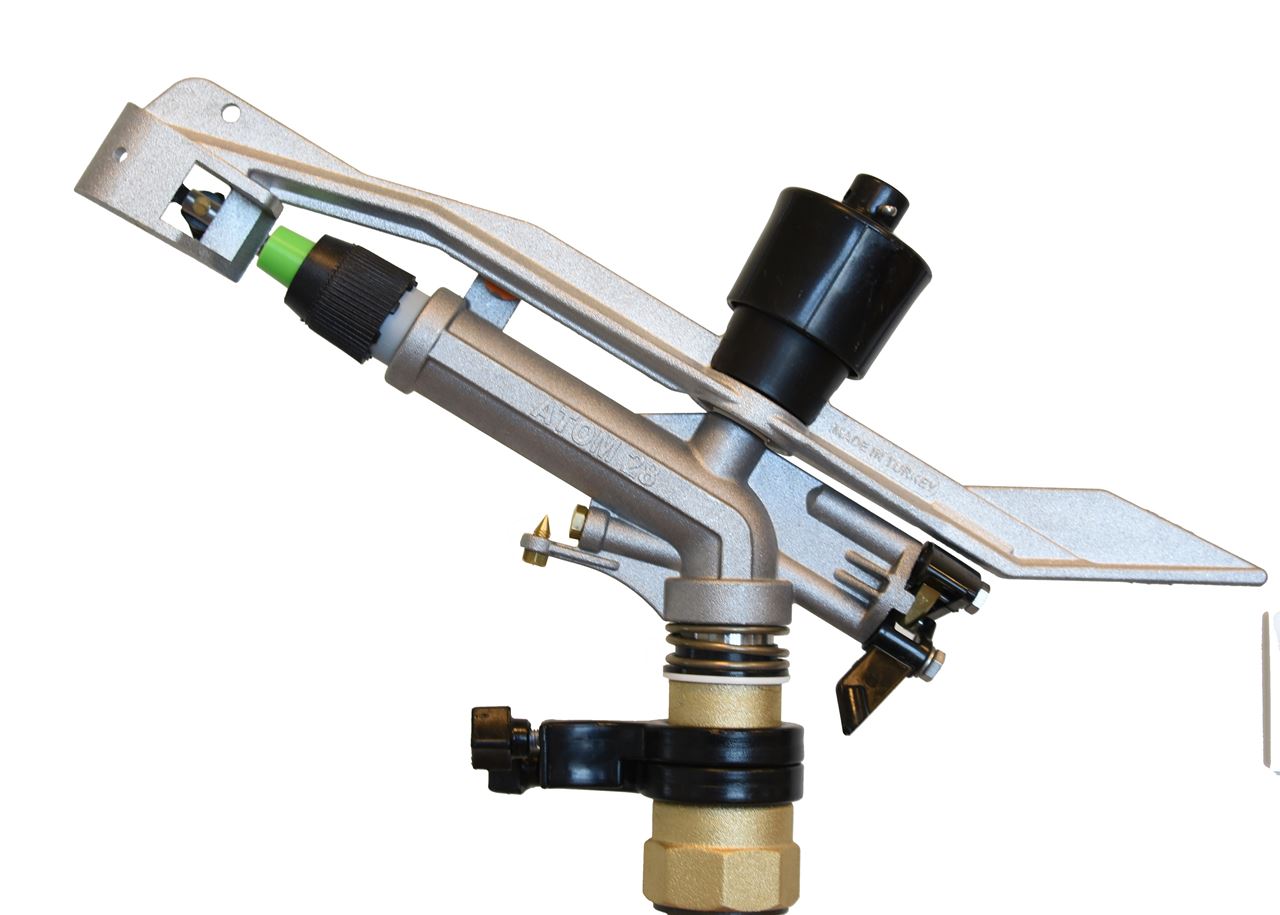

DuCaR Atom 28 Metal

Water Input : 1.5"
Working Pressure : 2 - 5 atm
Water Requirement : 6.5 - 18.8 m³
Knockers : 10, 12, 14 mm
Body Angle : 30°
Box Dimension : 25x40x6 cm
Weight : 1.5 kg
Shooting Range : 19 - 28 m
Circle : FC & PC
SKU: Atom28
Delivery date: 3-5 business days
Manufacturer: DuCaR

Agricultural Irrigation

Horse Farms and Pastureland Irrigation

Turf Irrigation and Synthetic Turf Cooling

Dust Control and Dust Suppression

Full and Part Circle, Impact Sprinkler Head for Low to Medium Pressure.

High capacity, medium pressure (2 – 5 atm) sprinkler head rotatable in one full turn or angle-adjusted.
Replaceable nozzle ends and one-hole water outlet allow you to irrigate your field with an even water distribution excellently.
Our patented jet breaker enables you to diffuse the water stream only the arm hits the stream. Thus, you get higher shooting range.
You may use it for any field crops and vegetables.
Convenient for multipurpose use with stationary and movable systems.
It is convenient for dust control at roadsides, mines, construction sites and coal yards.
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7

Full and Part Circle, Impact Sprinkler Head for Low to Medium Pressure.

High capacity, medium pressure (2 – 5 atm) sprinkler head rotatable in one full turn or angle-adjusted.
Replaceable nozzle ends and one-hole water outlet allow you to irrigate your field with an even water distribution excellently.
Our patented jet breaker enables you to diffuse the water stream only the arm hits the stream. Thus, you get higher shooting range.
You may use it for any field crops and vegetables.
Convenient for multipurpose use with stationary and movable systems.
It is convenient for dust control at roadsides, mines, construction sites and coal yards.
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
