New generation low volume, plastic impact sprinkler DuCaR Atom 15FC

Sunday, January 11, 2015

DuCaR Atom 15 FC

New generation, low volume, plastic, impact sprinkler with SWITCHABLE arm

DuCaR Atom 15 fc functionality
DuCaR Atom 15 FC functionality windy app

The atom 15 FC sprinklers, small and medium discharge, operate over a full 360 degrees. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineered plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.



Comes with 3 NOZZLES (End Plug - 4.5 - 5.5 mm) and a Jet Breaker.



The Atom 15 FC sprinkler is most commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers.



This sprinkler has a medium flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. “It is a male rotor 1” circular farm, made of plastic and has two references depending on the angle of mounting.

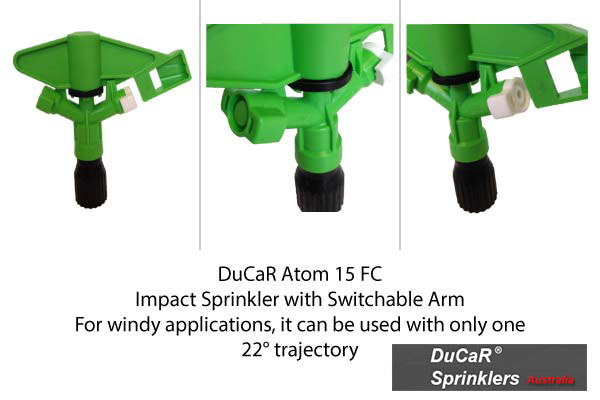

The Atom 15FC sprinkler can work with one or two nozzle. The main nozzle is 27° inclination to the horizontal plane and the secondary 22°.



These nozzles can be used in four combinations to suit the different working conditions.



1) Main nozzle 27°, second nozzle 22° for standard conditions.

2) Main nozzle 22°, second nozzle 27° for windy conditions.

3) Main nozzle 27°, second nozzle closed for standard low water applications.

4) Main nozzle 22°, second nozzle closed for windy low water applications.
