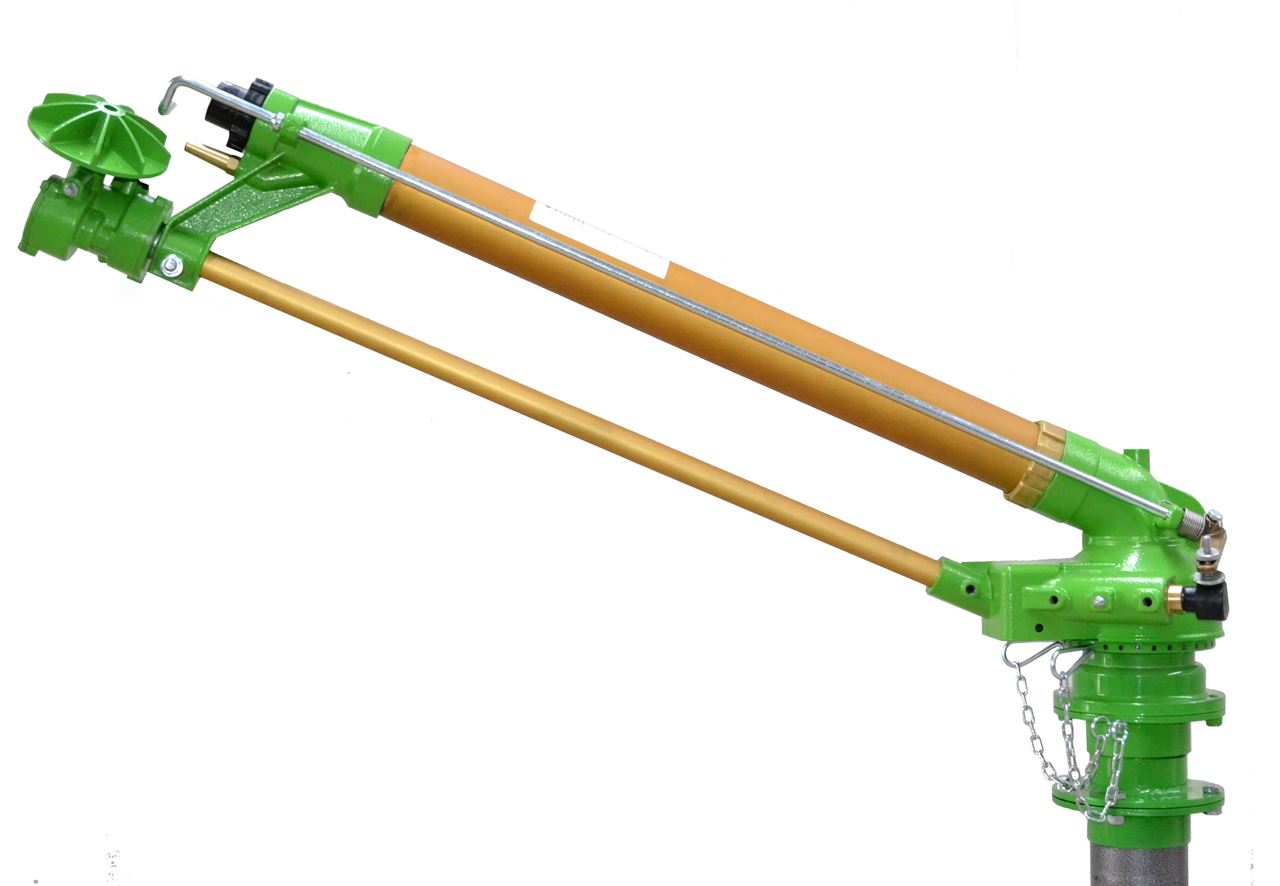

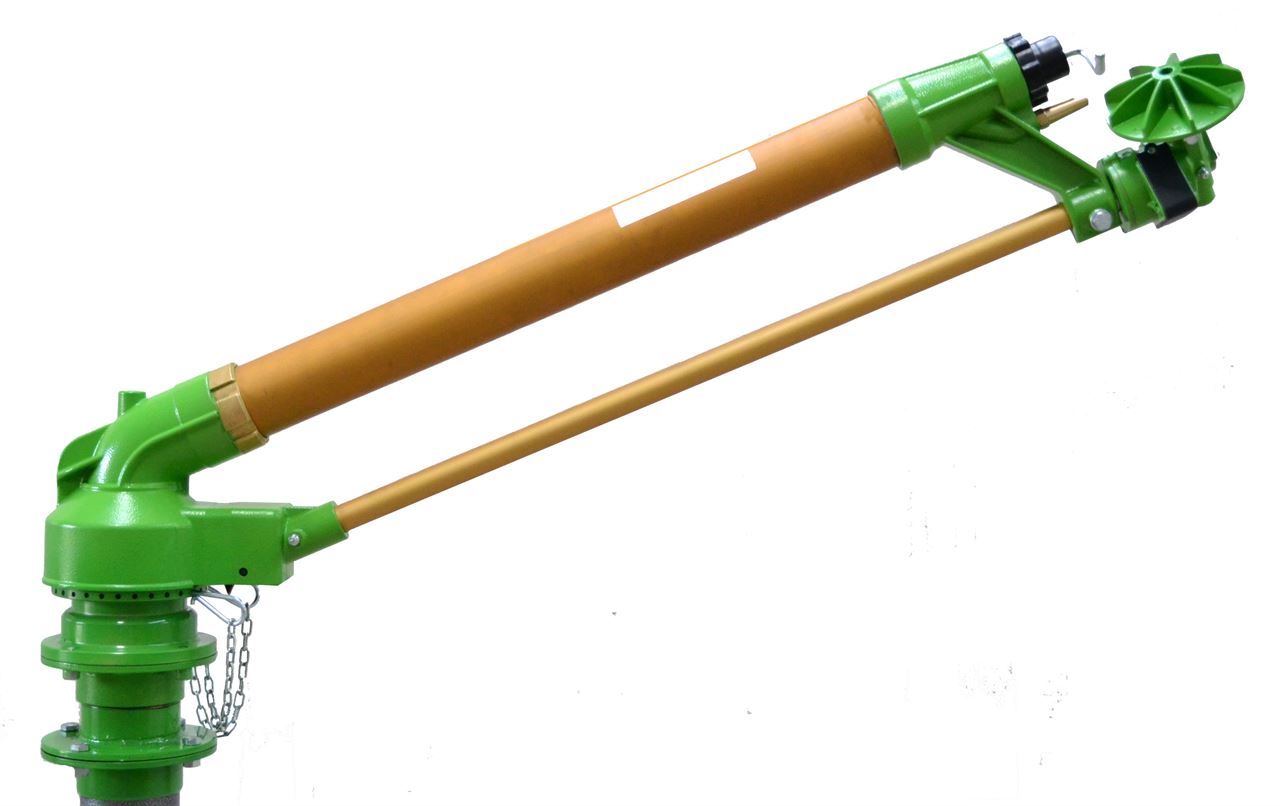

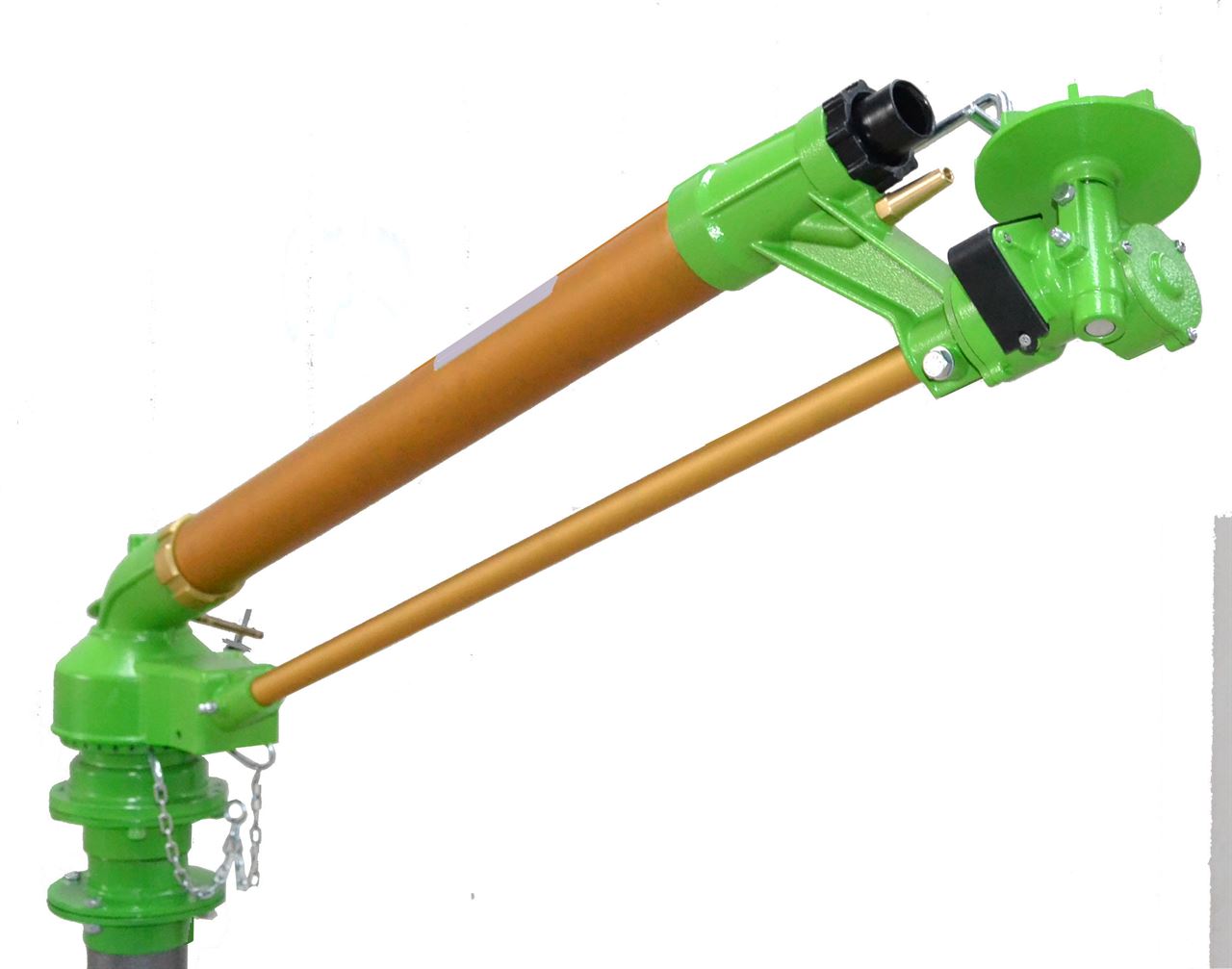

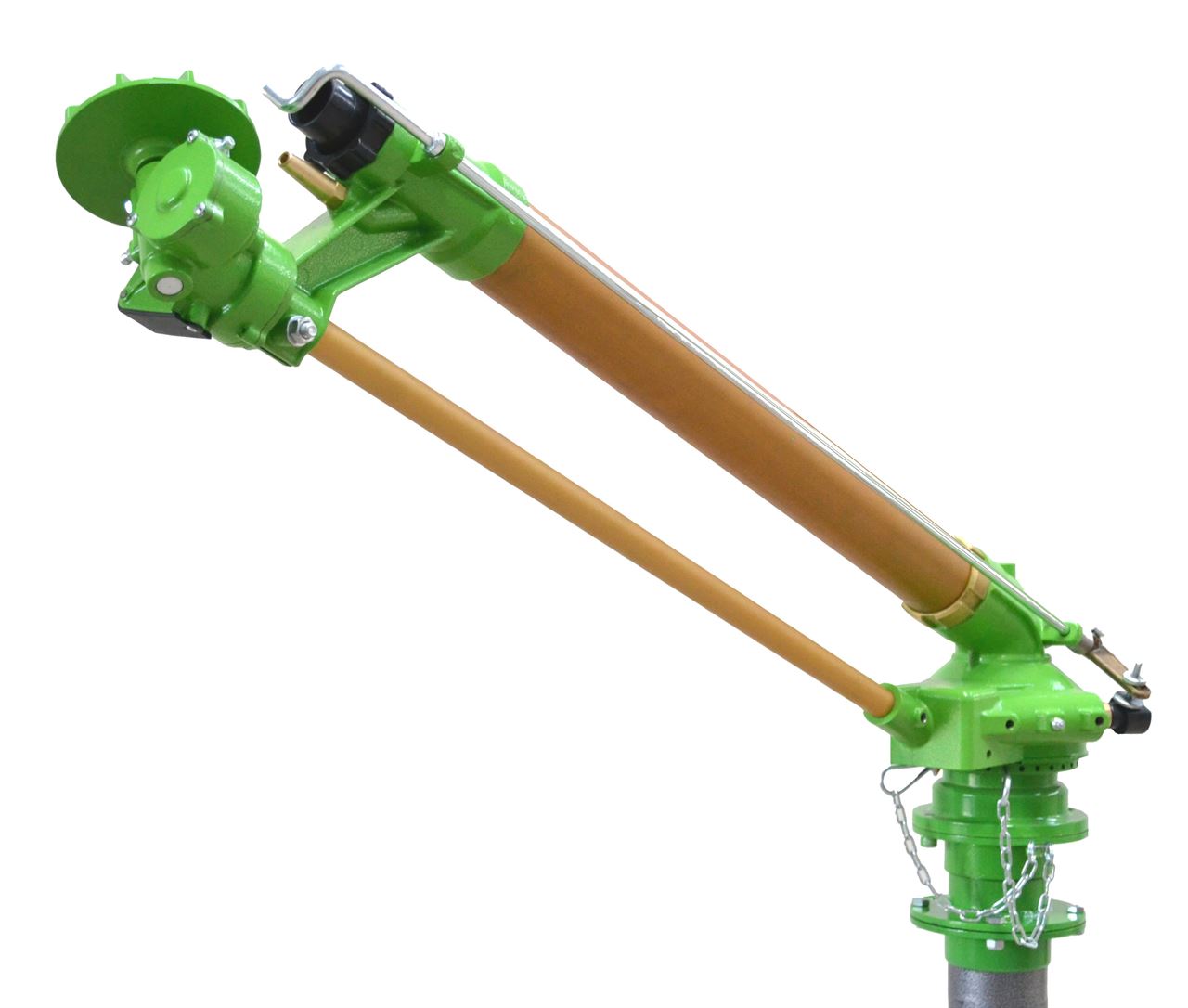

DuCaR Green 150

Water Input : 2.5"
Working Pressure : 3 - 7 atm
Water Requirement : 28 - 108 m³
Knockers : 20, 22, 24, 26, 28, 30, 32 mm
Body Angle : 24°
Box Dimension : 24 x 24 x 106 cm
Weight : 10 kg
Shooting Range : 34 - 66 m
SKU: GRN150
Manufacturer: DuCaR
Be the first to review this product

Agricultural Irrigation

Horse Farms and Pastureland Irrigation

Turf Irrigation and Synthetic Turf Cooling

Waste Water Irrigation

  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.
Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.

DuCaR Green 150 Technical

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
20 0.78 3 44 34 112 463.3 28 122 3630 0.90 7.7
20 0.78 4 56 38 125 548.3 33 145 4534 1.12 7.3
20 0.78 5 70 42 138 616.7 37 163 5539 1.37 6.7
22
(2 Hole)		 0.86 3 44 37 121 566.7 34 150 4299 1.06 7.9
22
(2 Hole)		 0.86 4 56 40 131 680 41 180 5024 1.24 8.1
22
(2 Hole)		 0.86 5 70 44 144 753.3 45 199 6079 1.5 7.4
22
(2 Hole)		 0.86 6 85 47 154 818.3 49 216 6936 1.71 7.1
24
(2 Hole)		 0.94 4 44 43 141 730 43.7 193 5806 1.43 7.5
24
(2 Hole)		 0.94 5 56 49 161 815 48.9 215 7539 1.86 6.5
24
(2 Hole)		 0.94 6 70 52 171 893 53.58 236 8491 2.1 6.3
26
(2 Hole)		 1.02 4 56 49 161 856 51.36 226 7539 1.86 6.8
26
(2 Hole)		 1.02 5 70 50 164 957 57.42 253 7850 1.94 7.3
26
(2 Hole)		 1.02 6 85 54 177 1048 62.88 277 9156 2.26 6.9
28
(2 Hole)		 1.1 4 56 51 167 992 59.52 262 8167 2.02 7.3
28
(2 Hole)		 1.1 5 70 55 180 1109 66.54 293 9499 2.35 7.0
28
(2 Hole)		 1.1 6 85 58 190 1215 72.9 321 10563 2.61 6.9
30
(2 Hole)		 1.18 5 70 56 184 1222 73.32 323 9847 2.43 7.4
30
(2 Hole)		 1.18 6 85 62 203 1393 83.58 368 12070 2.98 6.9
30
(2 Hole)		 1.18 7 100 64 210 1505 90.3 398 12861 3.18 7.0
32 1.25 5 85 62 203 1449 86.94 383 12070 2.98 7.2
32 1.25 6 100 64 210 1587 95.22 419 12861 3.18 7.4
32 1.25 7 100 66 216 1814 108.84 479 13678 3.38 8.0
  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.
Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.

DuCaR Green 150 Technical

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
20 0.78 3 44 34 112 463.3 28 122 3630 0.90 7.7
20 0.78 4 56 38 125 548.3 33 145 4534 1.12 7.3
20 0.78 5 70 42 138 616.7 37 163 5539 1.37 6.7
22
(2 Hole)		 0.86 3 44 37 121 566.7 34 150 4299 1.06 7.9
22
(2 Hole)		 0.86 4 56 40 131 680 41 180 5024 1.24 8.1
22
(2 Hole)		 0.86 5 70 44 144 753.3 45 199 6079 1.5 7.4
22
(2 Hole)		 0.86 6 85 47 154 818.3 49 216 6936 1.71 7.1
24
(2 Hole)		 0.94 4 44 43 141 730 43.7 193 5806 1.43 7.5
24
(2 Hole)		 0.94 5 56 49 161 815 48.9 215 7539 1.86 6.5
24
(2 Hole)		 0.94 6 70 52 171 893 53.58 236 8491 2.1 6.3
26
(2 Hole)		 1.02 4 56 49 161 856 51.36 226 7539 1.86 6.8
26
(2 Hole)		 1.02 5 70 50 164 957 57.42 253 7850 1.94 7.3
26
(2 Hole)		 1.02 6 85 54 177 1048 62.88 277 9156 2.26 6.9
28
(2 Hole)		 1.1 4 56 51 167 992 59.52 262 8167 2.02 7.3
28
(2 Hole)		 1.1 5 70 55 180 1109 66.54 293 9499 2.35 7.0
28
(2 Hole)		 1.1 6 85 58 190 1215 72.9 321 10563 2.61 6.9
30
(2 Hole)		 1.18 5 70 56 184 1222 73.32 323 9847 2.43 7.4
30
(2 Hole)		 1.18 6 85 62 203 1393 83.58 368 12070 2.98 6.9
30
(2 Hole)		 1.18 7 100 64 210 1505 90.3 398 12861 3.18 7.0
32 1.25 5 85 62 203 1449 86.94 383 12070 2.98 7.2
32 1.25 6 100 64 210 1587 95.22 419 12861 3.18 7.4
32 1.25 7 100 66 216 1814 108.84 479 13678 3.38 8.0
Products specifications
Body Angle
Water Input
Working Pressure
Water Requirement 28 - 108 m³
Knockers 20, 22, 24, 26, 28, 30, 32 mm
Box Dimension 24 x 24 x 106 cm
Weight 10 kg
Minimum Shooting Range 34 m
Maximum Shooting Range
Free Quick Coupling
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Body Angle
Water Input
Working Pressure
Water Requirement 28 - 108 m³
Knockers 20, 22, 24, 26, 28, 30, 32 mm
Box Dimension 24 x 24 x 106 cm
Weight 10 kg
Minimum Shooting Range 34 m
Maximum Shooting Range
Free Quick Coupling
