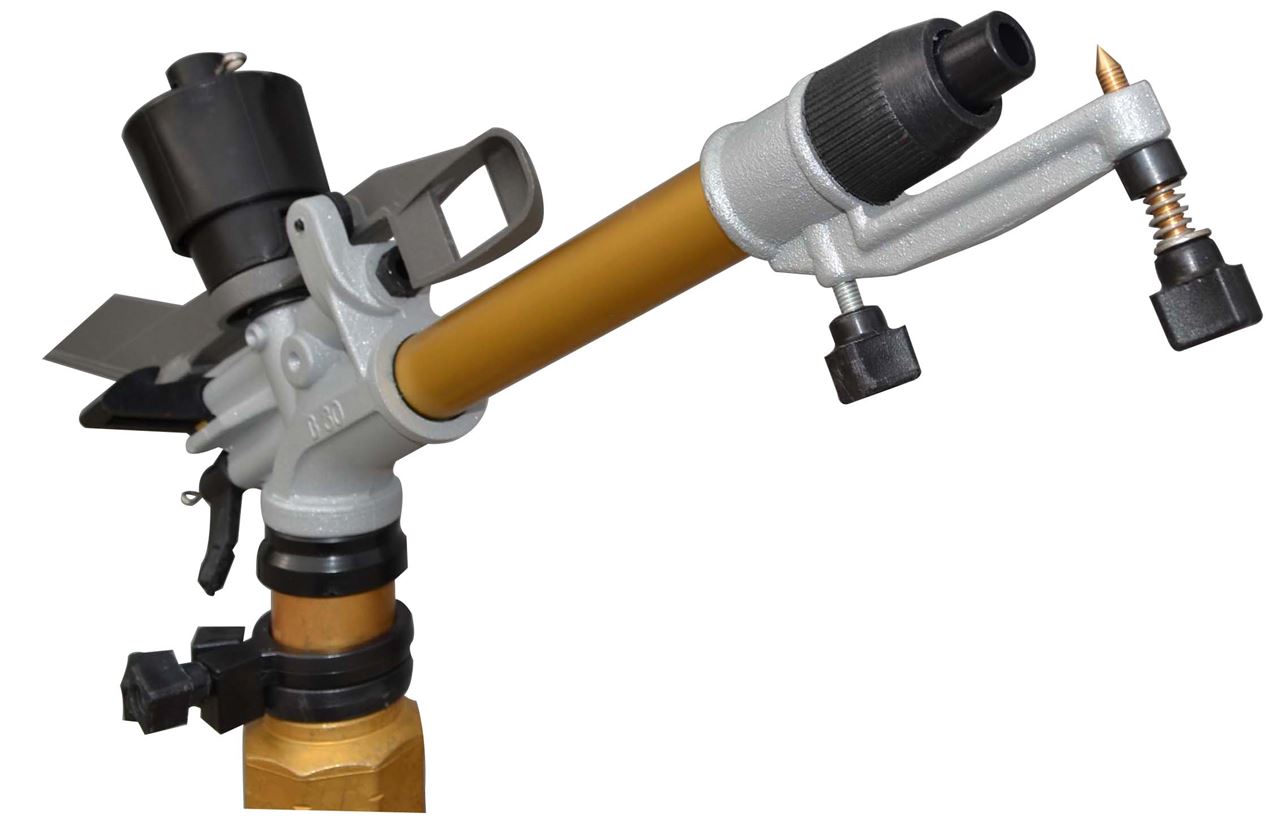

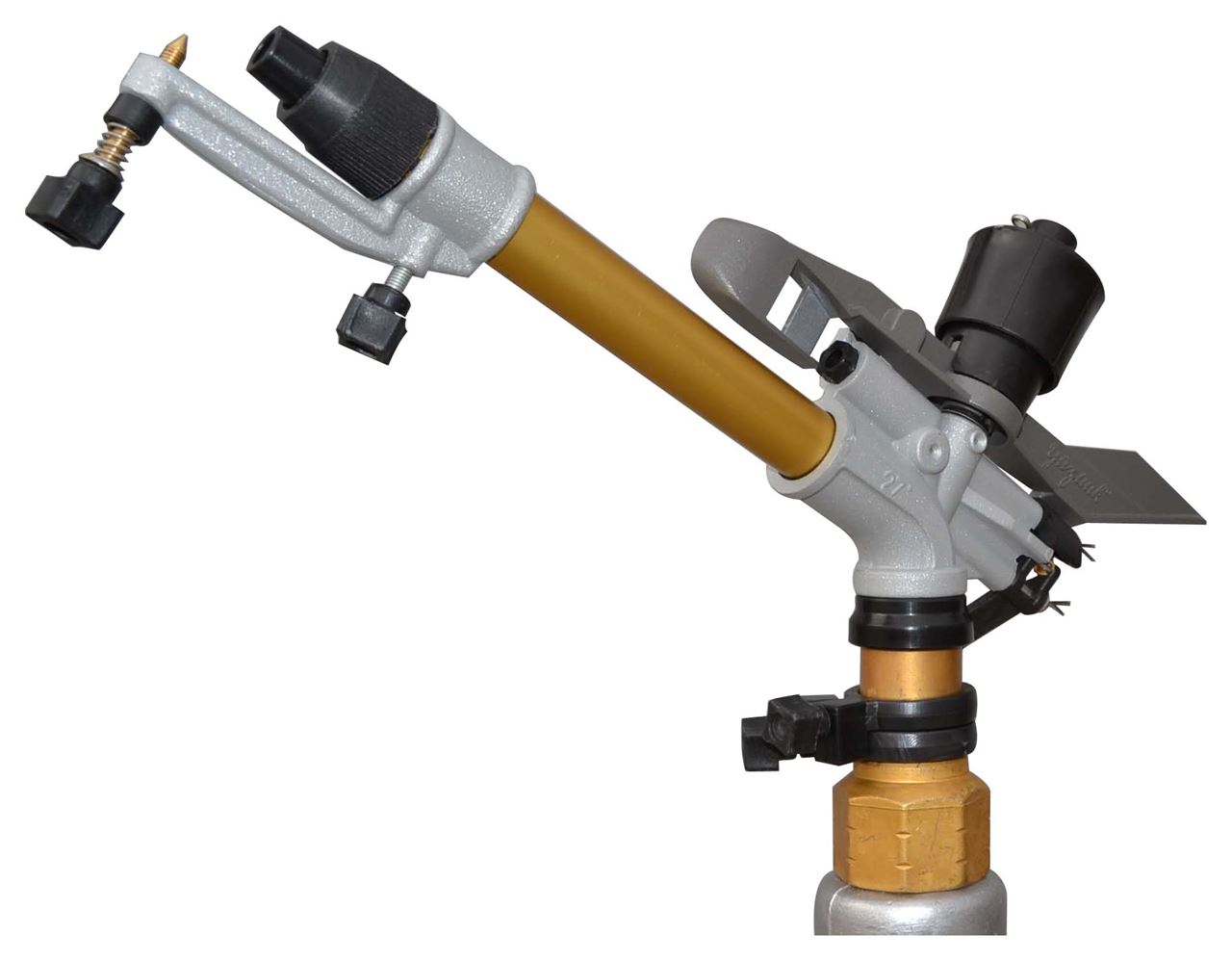

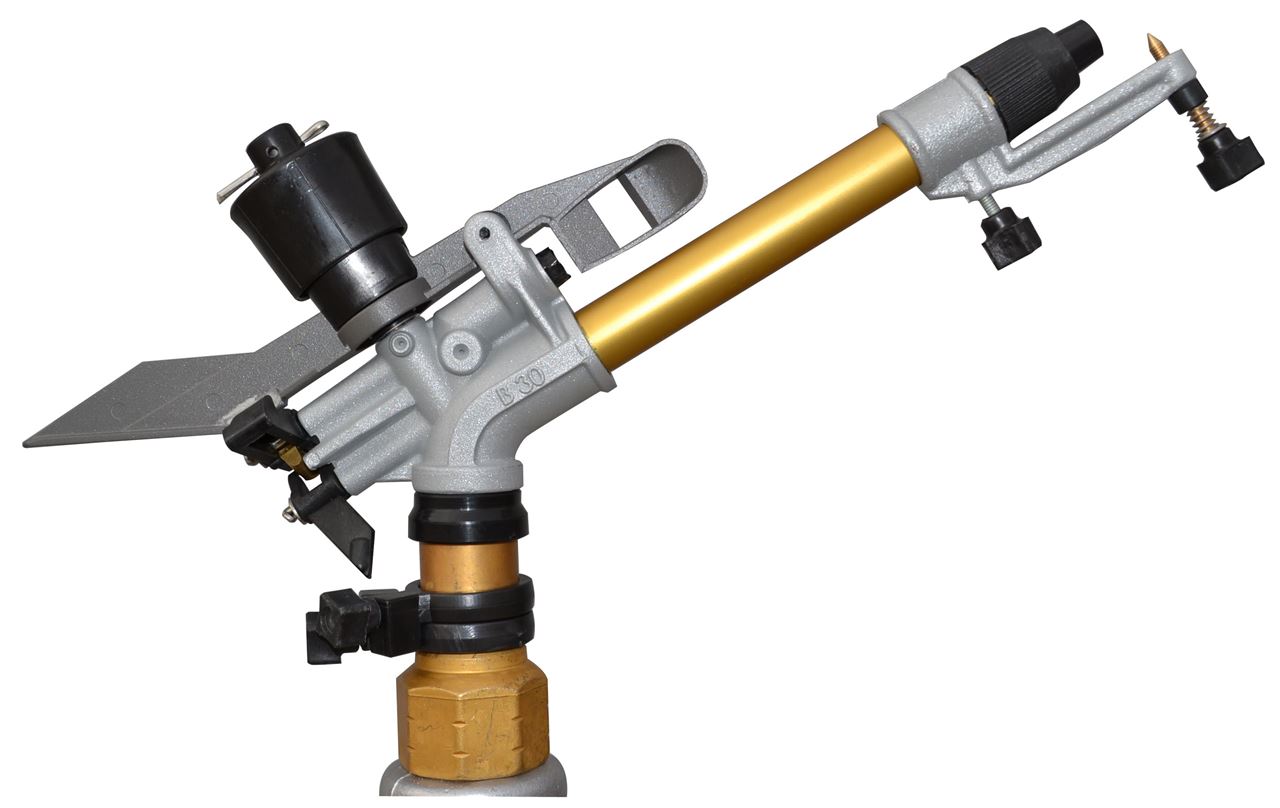

DuCaR B 30 Metal

Water Input : 1.5"
Working Pressure : 2 - 6 atm
Water Requirement : 6 - 23.5 m³
Knockers : 8, 10, 12, 14 mm
Body Angle : 27°
Box Dimension : 40x25x6 cm
Weight : 1.5 kg
Shooting Range : 17 - 31 m
Circle : FC & PC
SKU: B30
Delivery date: 3-5 business days
Manufacturer: DuCaR

Agricultural Irrigation

Horse Farms and Pastureland Irrigation

Turf Irrigation and Synthetic Turf Cooling

Dust Control and Dust Suppression

Full and Part Circle, Impact Sprinkler Head for Medium Pressure.

High capacity, medium pressure (2 – 6 atm) sprinkler head rotatable in one full turn or angle-adjusted.
Its two water sprays provide perfect coverage and uniformity.
Replaceable nozzle ends and one-hole water outlet allow you to irrigate your field with an even water distribution excellently.
You may use it for any field crops and vegetables.
Convenient for multipurpose use with stationary and movable systems.
It is convenient for dust control at roadsides, mines, construction sites and coal yards.
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
8 .31 2 29 17 56 100 6,00 26 907 0,22 6,6
8 .31 3 44 19 62 120,8 7,25 32 1134 0,28 6,4
8 .31 4 56 21 69 141,7 8,50 37 1385 0,34 6,1
10 .39 2 29 18 59 130 7,80 34 1017 0,25 7,7
10 .39 3 44 21 69 160 9,60 42 1385 0,34 6,9
10 .39 4 56 22,5 74 185 11,10 49 1590 0,39 7,0
10 .39 5 70 24,5 80 208,3 12,50 55 1885 0,47 6,6
12 .47 2 29 19 62 168,3 10,10 44 1134 0,28 8,9
12 .47 3 44 22 72 206,7 12,40 55 1520 0,38 8,2
12 .47 4 56 25 82 241,7 14,50 64 1963 0,48 7,4
12 .47 5 70 27 89 270 16,20 71 2289 0,57 7,1
14 .55 2 29 21 69 216,7 13,00 57 1385 0,34 9,4
14 .55 3 44 24 79 266,7 16,00 70 1809 0,45 8,8
14 .55 4 56 26 85 308,3 18,50 81 2123 0,52 8,7
14 .55 5 70 28,5 93 350 21,00 92 2550 0,63 8,2
14 .55 6 85 31 102 391,7 23,50 103 3018 0,75 7,8

Full and Part Circle, Impact Sprinkler Head for Medium Pressure.

High capacity, medium pressure (2 – 6 atm) sprinkler head rotatable in one full turn or angle-adjusted.
Its two water sprays provide perfect coverage and uniformity.
Replaceable nozzle ends and one-hole water outlet allow you to irrigate your field with an even water distribution excellently.
You may use it for any field crops and vegetables.
Convenient for multipurpose use with stationary and movable systems.
It is convenient for dust control at roadsides, mines, construction sites and coal yards.
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
8 .31 2 29 17 56 100 6,00 26 907 0,22 6,6
8 .31 3 44 19 62 120,8 7,25 32 1134 0,28 6,4
8 .31 4 56 21 69 141,7 8,50 37 1385 0,34 6,1
10 .39 2 29 18 59 130 7,80 34 1017 0,25 7,7
10 .39 3 44 21 69 160 9,60 42 1385 0,34 6,9
10 .39 4 56 22,5 74 185 11,10 49 1590 0,39 7,0
10 .39 5 70 24,5 80 208,3 12,50 55 1885 0,47 6,6
12 .47 2 29 19 62 168,3 10,10 44 1134 0,28 8,9
12 .47 3 44 22 72 206,7 12,40 55 1520 0,38 8,2
12 .47 4 56 25 82 241,7 14,50 64 1963 0,48 7,4
12 .47 5 70 27 89 270 16,20 71 2289 0,57 7,1
14 .55 2 29 21 69 216,7 13,00 57 1385 0,34 9,4
14 .55 3 44 24 79 266,7 16,00 70 1809 0,45 8,8
14 .55 4 56 26 85 308,3 18,50 81 2123 0,52 8,7
14 .55 5 70 28,5 93 350 21,00 92 2550 0,63 8,2
14 .55 6 85 31 102 391,7 23,50 103 3018 0,75 7,8
Products specifications
Body Angle
Water Input
Circle Full & Part
Working Pressure
Water Requirement
Knockers
Box Dimension
Weight
Minimum Shooting Range
Maximum Shooting Range
