Picture of DuCaR Dust JET Picture of DuCaR Dust JET

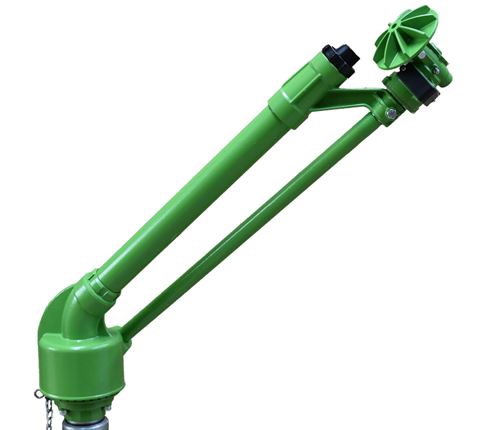

DuCaR Dust JET

Water Input : 2,5"
Working Pressure : 3-7 atm
Water Requirement : 12 - 58 m³
Knockers : 12, 14, 16, 18, 20, 22, 24 mm
Body Angle : 43°
Box Dimension : 20x20x89 cm
Weight : 9 kg
Shooting Range : 25 - 47 m
SKU: DSTJET
Delivery date: 5 - 10 business days
Manufacturer: DuCaR
Be the first to review this product

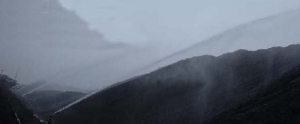

Dust Control and Suppression

Wash Irrigation

Special design, gear drive dust control nozzle

Special design with one-hole allows irrigation and humidification of large lands by minimum water consumption.

Replaceable water breaker and gear drive mechanism ensure the droplets are spread over the working area in a form of mist screen. As the gear drive dust control nozzles break the water constantly, it ensures uninterrupted dust suppression. It has excellent and equal forward and reverse speed. Standard model, Dust43, is protected against light to medium degree chemical waters thanks to the rotation bearing powder painted and stainless.



Technical Specifications
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 3 44 25 82 193 11.6 51
12 .47 4 56 27 89 220 13,2 58
12 .47 5 70 29 95 243 14,6 64
12 .47 6 85 30,5 100 265 15,9 70
14 ,55 3 44 27,5 90 250 15 66
14 ,55 4 56 30,5 100 287 17,2 76
14 ,55 5 70 32,5 107 322 19,3 85
14 ,55 6 85 34 112 343 70,6 91
16 ,62 3 44 30,5 100 313 18,8 83
16 ,62 4 56 33,5 110 353 21,5 95
16 ,62 5 70 35 115 403 24,2 107
16 ,62 6 85 37,5 123 425 25,5 112
18 .70 4 56 35,5 116 467 28 123
18 .70 5 70 37,5 123 493 29,6 130
18 .70 6 85 40 131 543 32,6 144
20 .78 3 44 33,5 110 462 27,7 122
20 .78 4 56 37 121 553 33,2 146
20 .78 5 70 39,5 130 608 36,5 161
20 .78 6 85 42 138 632 37,9 167
22 .86 3 44 35 115 873 34,4 151
22 .86 4 56 38,5 126 658 59,5 174
22 .86 5 70 41 134 733 44 194
22 .86 6 85 43 141 767 46 203
24 .94 4 56 39 128 788 47,3 208
24 .94 5 70 41,5 136 818 49,1 216
24 .94 6 85 45 148 902 51,1 238
24 .94 7 100 47 154 967 58 255

Special design, gear drive dust control nozzle

Special design with one-hole allows irrigation and humidification of large lands by minimum water consumption.

Replaceable water breaker and gear drive mechanism ensure the droplets are spread over the working area in a form of mist screen. As the gear drive dust control nozzles break the water constantly, it ensures uninterrupted dust suppression. It has excellent and equal forward and reverse speed. Standard model, Dust43, is protected against light to medium degree chemical waters thanks to the rotation bearing powder painted and stainless.



Technical Specifications
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 3 44 25 82 193 11.6 51
12 .47 4 56 27 89 220 13,2 58
12 .47 5 70 29 95 243 14,6 64
12 .47 6 85 30,5 100 265 15,9 70
14 ,55 3 44 27,5 90 250 15 66
14 ,55 4 56 30,5 100 287 17,2 76
14 ,55 5 70 32,5 107 322 19,3 85
14 ,55 6 85 34 112 343 70,6 91
16 ,62 3 44 30,5 100 313 18,8 83
16 ,62 4 56 33,5 110 353 21,5 95
16 ,62 5 70 35 115 403 24,2 107
16 ,62 6 85 37,5 123 425 25,5 112
18 .70 4 56 35,5 116 467 28 123
18 .70 5 70 37,5 123 493 29,6 130
18 .70 6 85 40 131 543 32,6 144
20 .78 3 44 33,5 110 462 27,7 122
20 .78 4 56 37 121 553 33,2 146
20 .78 5 70 39,5 130 608 36,5 161
20 .78 6 85 42 138 632 37,9 167
22 .86 3 44 35 115 873 34,4 151
22 .86 4 56 38,5 126 658 59,5 174
22 .86 5 70 41 134 733 44 194
22 .86 6 85 43 141 767 46 203
24 .94 4 56 39 128 788 47,3 208
24 .94 5 70 41,5 136 818 49,1 216
24 .94 6 85 45 148 902 51,1 238
24 .94 7 100 47 154 967 58 255
Products specifications
Body Angle 43 °
Water Input
Working Pressure
Water Requirement 12 - 58 m³
Knockers 12, 14, 16, 18, 20, 22, 24 mm
Box Dimension 20x20x89 cm
Weight 9 kg
Minimum Shooting Range 25 m
Maximum Shooting Range
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Body Angle 43 °
Water Input
Working Pressure
Water Requirement 12 - 58 m³
Knockers 12, 14, 16, 18, 20, 22, 24 mm
Box Dimension 20x20x89 cm
Weight 9 kg
Minimum Shooting Range 25 m
Maximum Shooting Range
