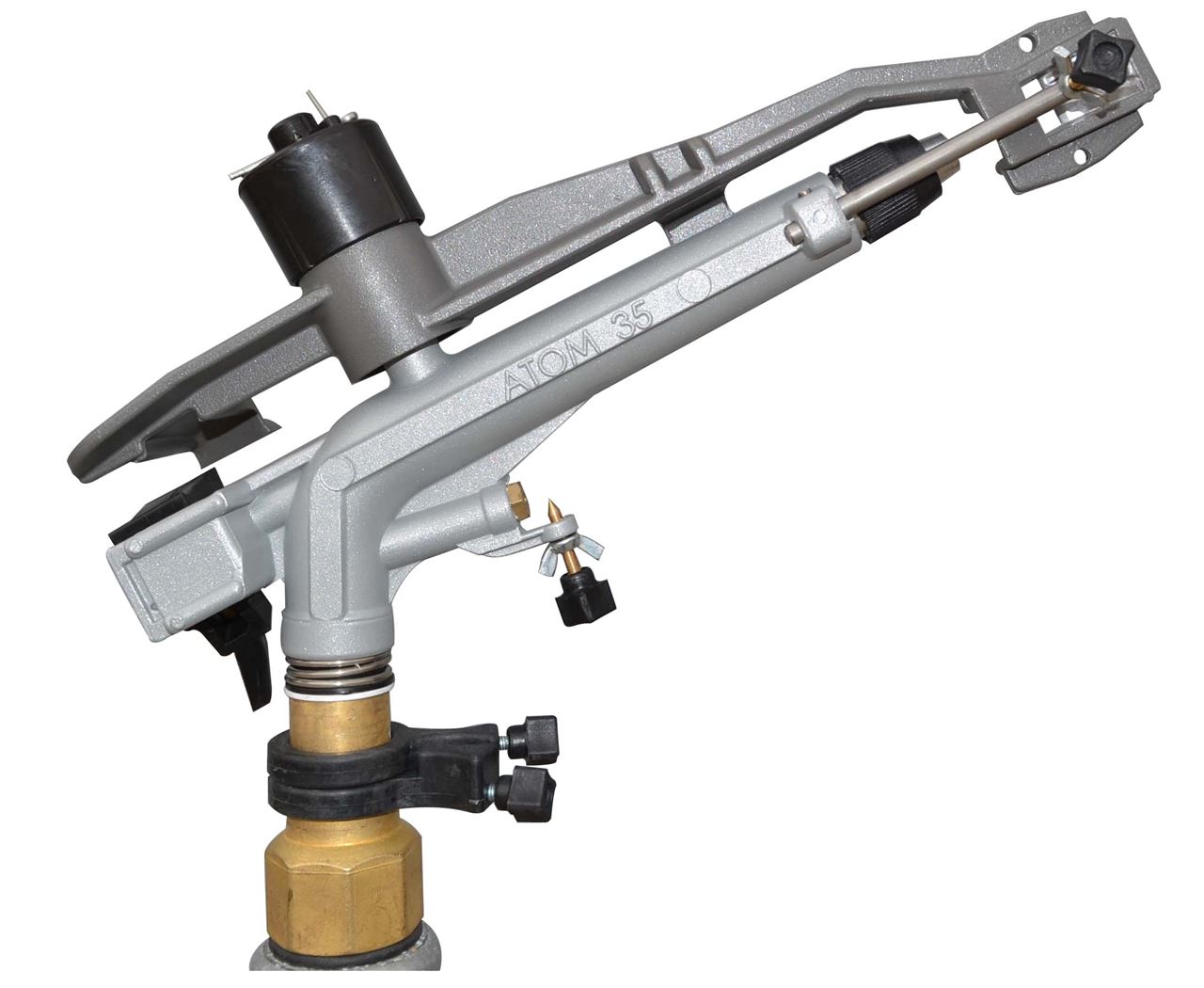

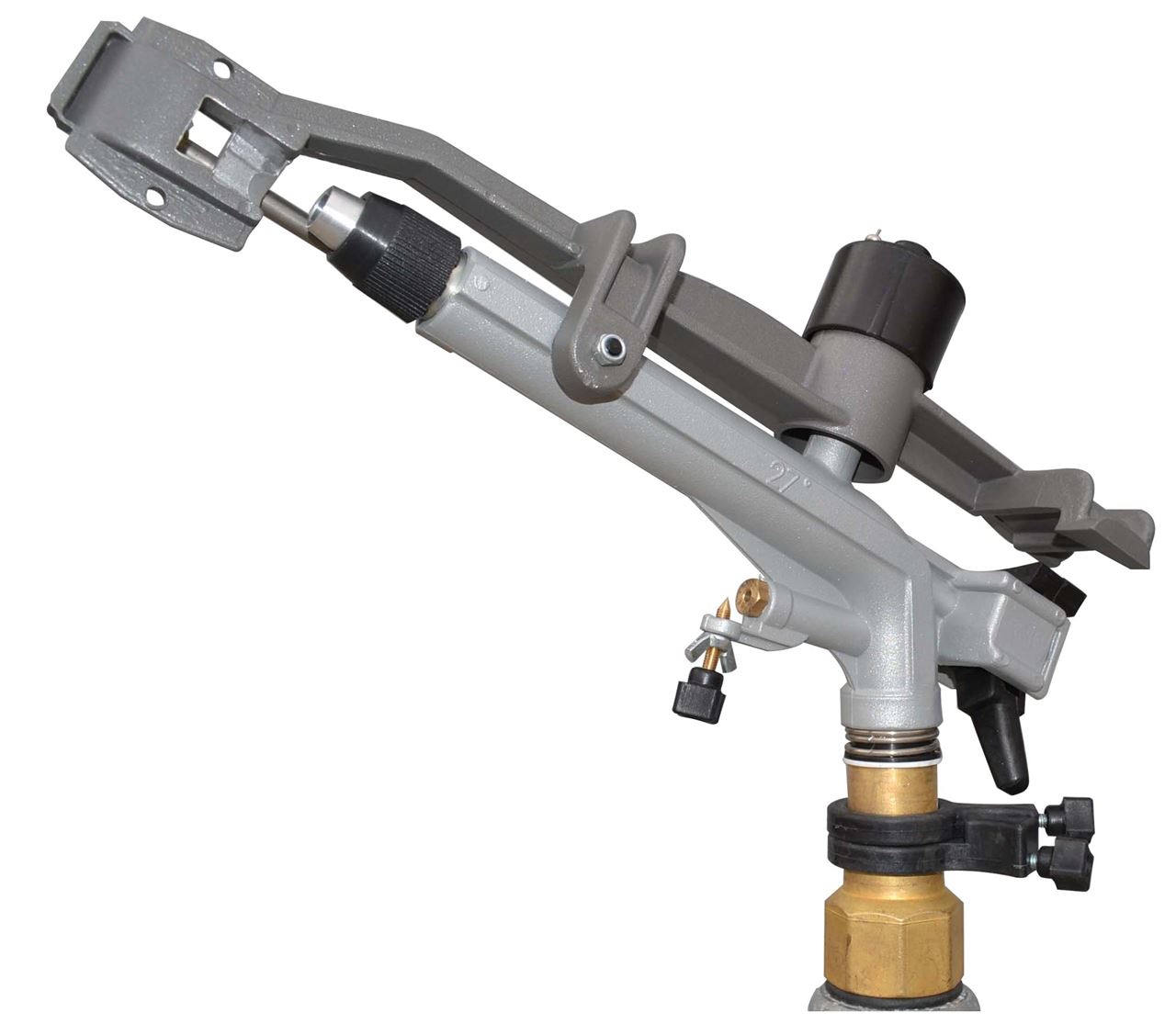

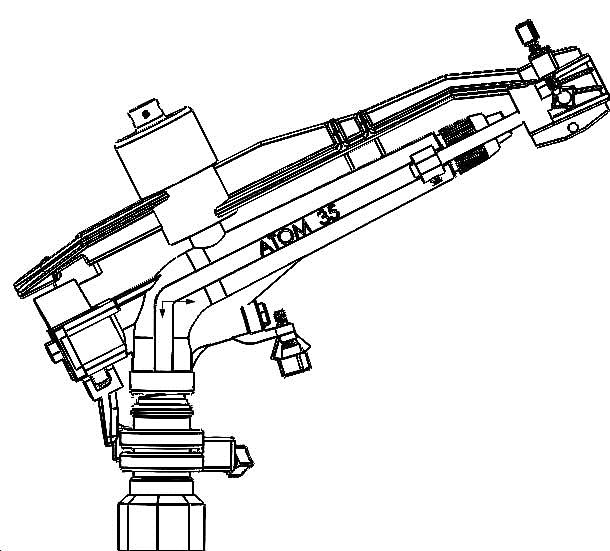

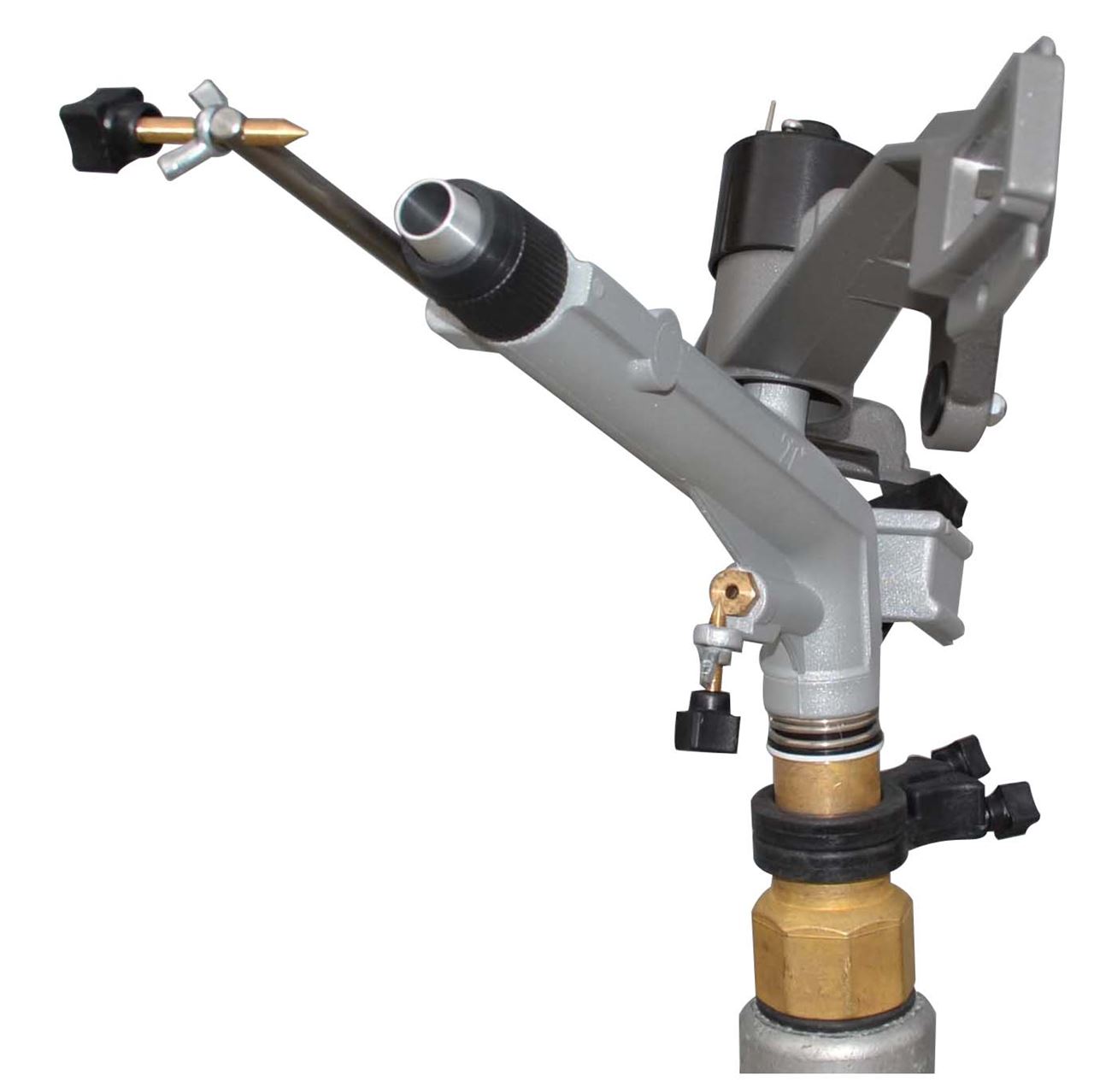

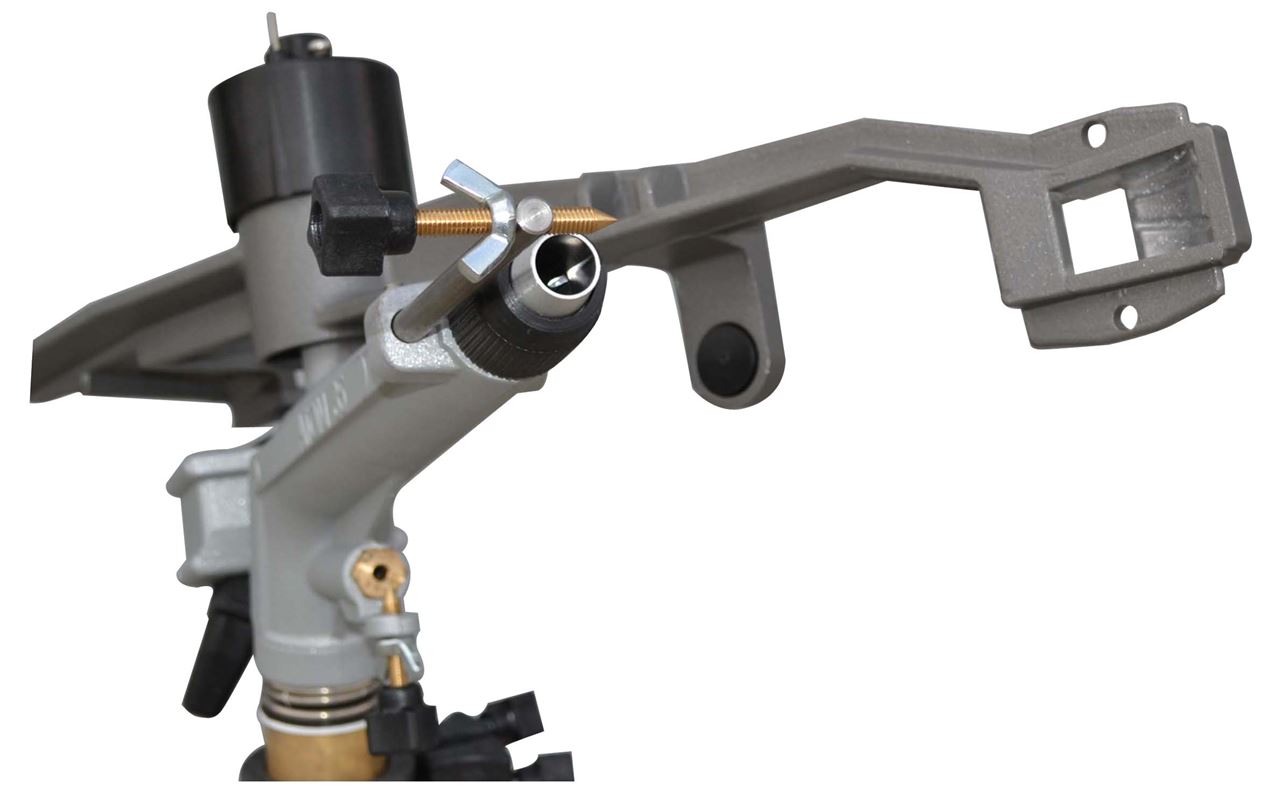

DuCaR Atom 35 Metal

Water Input : 1.5"
Working Pressure : 2 - 6 atm
Water Requirement : 10.1 - 23.5 m³
Knockers : 14, 16, 18 mm
Body Angle : 27°
Box Dimension : 45x35x12 cm
Weight : 2.5 kg
Shooting Range : 20 - 35 m
Circle : FC & PC
SKU: Atom35
Delivery date: 3-5 business days
Manufacturer: DuCaR

Agricultural Irrigation

Horse Farms and Pastureland Irrigation

Turf Irrigation and Synthetic Turf Cooling

Dust Control and Dust Suppression

Full and Part Circle, Impact Sprinkler Head for Medium to High Pressure.

High capacity, medium pressure (2 – 6 atm) sprinkler head rotatable in one full turn or angle-adjusted.
Its two water sprays provide perfect coverage and uniformity.
Replaceable nozzle ends and one-hole water outlet allow you to irrigate your field with an even water distribution excellently.
You may use it for any field crops and vegetables.
Convenient for multipurpose use with stationary and movable systems.
It is convenient for dust control at roadsides, mines, construction sites and coal yards.
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 20,0 66 152 9,3 41 1256 0,31 7,4
12 .47 3 44 24,0 79 182 11,2 49 1809 0,45 6,2
12 .47 4 56 27,0 89 211 13,0 57 2289 0,57 5,7
12 .47 5 70 28,0 92 236 14,2 63 2462 0,61 5,2
14 .55 2 29 21,0 69 195 12,1 53 1384 0,34 8,4
14 .55 3 44 25,0 82 239 14,5 64 1962 0,48 7,4
14 .55 4 56 29,0 95 277 16,9 74 2640 0,65 6,4
14 .55 5 70 30,0 98 309 18,9 83 3017 0,75 6,3
16 .62 2 29 22,0 72 247 15,2 67 1519 0,38 10,0
16 .62 3 44 26,0 85 303 18,9 83 2123 0,52 8,9
16 .62 4 56 30,0 98 351 21,5 95 2826 0,70 7,5
16 .62 5 70 32,0 105 391 24,0 106 3215 0,79 6,9
18 .70 3 44 27,0 89 378 23,1 102 2461 0,61 9,4
18 .70 4 56 30,0 98 436 27,0 119 3017 0,75 8,9
18 .70 5 70 34,0 112 487 30,1 133 3629 0,90 8,1
18 .70 6 85 35,0 115 533 32,5 143 3847 0,95 7,9

Full and Part Circle, Impact Sprinkler Head for Medium to High Pressure.

High capacity, medium pressure (2 – 6 atm) sprinkler head rotatable in one full turn or angle-adjusted.
Its two water sprays provide perfect coverage and uniformity.
Replaceable nozzle ends and one-hole water outlet allow you to irrigate your field with an even water distribution excellently.
You may use it for any field crops and vegetables.
Convenient for multipurpose use with stationary and movable systems.
It is convenient for dust control at roadsides, mines, construction sites and coal yards.
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 20,0 66 152 9,3 41 1256 0,31 7,4
12 .47 3 44 24,0 79 182 11,2 49 1809 0,45 6,2
12 .47 4 56 27,0 89 211 13,0 57 2289 0,57 5,7
12 .47 5 70 28,0 92 236 14,2 63 2462 0,61 5,2
14 .55 2 29 21,0 69 195 12,1 53 1384 0,34 8,4
14 .55 3 44 25,0 82 239 14,5 64 1962 0,48 7,4
14 .55 4 56 29,0 95 277 16,9 74 2640 0,65 6,4
14 .55 5 70 30,0 98 309 18,9 83 3017 0,75 6,3
16 .62 2 29 22,0 72 247 15,2 67 1519 0,38 10,0
16 .62 3 44 26,0 85 303 18,9 83 2123 0,52 8,9
16 .62 4 56 30,0 98 351 21,5 95 2826 0,70 7,5
16 .62 5 70 32,0 105 391 24,0 106 3215 0,79 6,9
18 .70 3 44 27,0 89 378 23,1 102 2461 0,61 9,4
18 .70 4 56 30,0 98 436 27,0 119 3017 0,75 8,9
18 .70 5 70 34,0 112 487 30,1 133 3629 0,90 8,1
18 .70 6 85 35,0 115 533 32,5 143 3847 0,95 7,9
Products specifications
Body Angle
Water Input
Circle Full & Part
Working Pressure
Water Requirement
Knockers
Box Dimension
Weight
Minimum Shooting Range
Maximum Shooting Range
