Picture of IrriCruiser ULTIMATE Travelling Irrigator Picture of IrriCruiser ULTIMATE Travelling Irrigator Picture of IrriCruiser ULTIMATE Travelling Irrigator Picture of IrriCruiser ULTIMATE Travelling Irrigator Picture of IrriCruiser ULTIMATE Travelling Irrigator

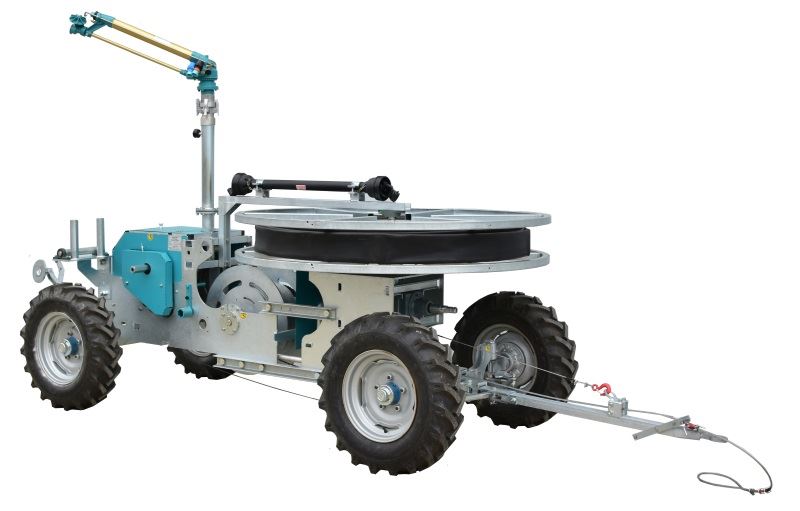

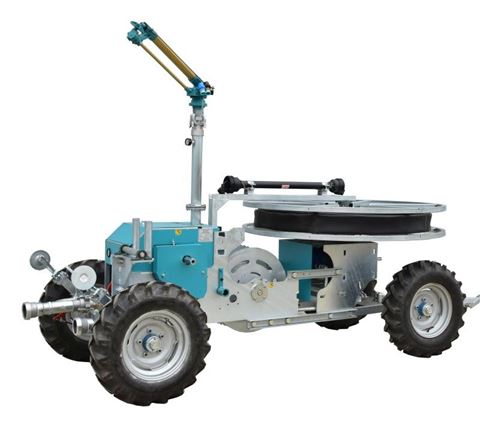

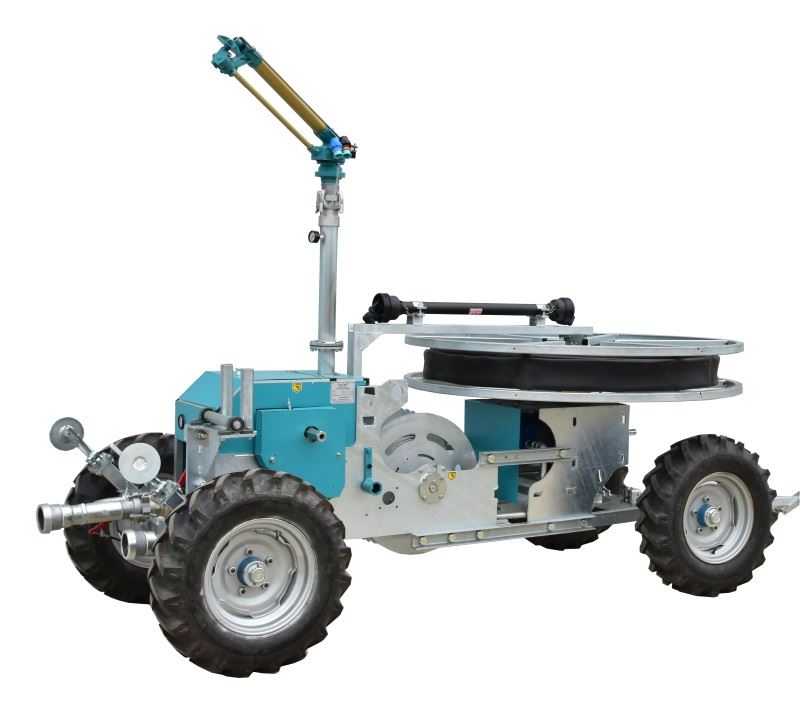

IrriCruiser ULTIMATE Travelling Irrigator

Run Length : 400 M
Lay Flat Hose : 3.5" 200 m Premium Drag Hose
Working Pressure : 70 - 100 psi
Water Flow : 700 - 1400 l/min
Effective Spray Width : 70M - 120M
Total Irrigated Area : 445 X 630 m = 280,350 m² (28 Hectare) in 7 days
Speed : 10 - 70 m/hour
Sprinkler : DuCaR Green 150
Mechanism : Turbine drive, BIMA 3-Speed Gear Box & Automatic Travel Shut Off
Weight : 1200 kg
Construction : Heavy duty welded chassis with rust proof and hot dip galvanised frame and reel
SKU: IrriCruiser-Ultimate
Manufacturer: DuCaR
Be the first to review this product

DuCaR IrriCruiser ULTIMATE - New Generation Travelling Irrigator

APPLICATIONS

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Fully hot dip galvanised frame and hose reel
  • Travel shut-off mechanism
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
  • 3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control: Extremely wide range of speed for any crop and application.
  • Manual brake system
  • PTO driven integrated hose reel
  • PTO driven PURGE pump allows you to easily empty the hose before rewinding the hose
  • Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Sensitive wheel system
  • NO EXHAUST WATER - NO PISTON - NO TOO MANY MOVING PARTS
  • Comes with 3.5", 200m Premium Quality German Made Drag Hose
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCuriser Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
  • DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
  • The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
  • The turbine’s RPM and travelling speed is read on accurate digital tachometers.
  • No Filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

Operation Illustration

technical table

Technical Specifications of DuCaR Green 150 Sprinkler Head



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
14 0,55 2,5 37 24 79 220 13,2 58 1808 0,45 7,3
14 0,55 3 44 26 85 233,3 14 62 2122 0,52 6,6
14 0,55 4 56 29 95 270 16,2 71 2640 0,65 6,1
16 0,62 2 29 26 85 241,7 14,5 64 2122 0,52 6,8
16 0,62 3 44 29 95 296,7 17,8 78 2640 0,65 6,7
16 0,62 4 56 31 100 341,7 20,5 90 2920 0,72 7,0
16 0,62 5 70 33 108 386,7 23,2 102 3419 0,84 6,8
18 0,70 3 44 32 105 375 22,5 99 3215 0,79 7,0
18 0,70 4 56 35 115 438,3 26,3 116 3846 0,95 6,8
18 0,70 5 70 37 121 470 28,2 124 4298 1,06 6,6
18 0,70 6 85 40 131 521,7 31,3 138 5024 1,24 6,2
20 0,78 3 44 35 115 445 26,7 118 2846 0,95 6,9
20 0,78 4 56 37 121 536,7 32,2 142 4298 1,06 7,5
20 0,78 5 70 42 138 591,7 35,5 156 5538 1,37 6,4
22 0,86 3 44 35 115 556,7 33,4 147 3846 0,95 8,7
22 0,86 4 56 37 121 641,7 38,5 170 4298 1,06 9,0
22 0,86 5 70 40 131 716,7 43 189 5024 1,24 8,6
22 0,86 6 85 42 138 786,7 47,2 208 5538 1,37 8,5
24 0,94 4 56 43 141 771,7 46,3 204 5805 1,43 8,0
24 0,94 5 70 45 148 801,7 48,1 212 6358 1,57 7,6
24 0,94 6 85 47 154 885 53,1 234 6936 1,71 7,7
24 0,94 7 100 50 164 950 57 251 7850 1,94 7,3

DuCaR IrriCruiser ULTIMATE - New Generation Travelling Irrigator

APPLICATIONS

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Fully hot dip galvanised frame and hose reel
  • Travel shut-off mechanism
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
  • 3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control: Extremely wide range of speed for any crop and application.
  • Manual brake system
  • PTO driven integrated hose reel
  • PTO driven PURGE pump allows you to easily empty the hose before rewinding the hose
  • Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Sensitive wheel system
  • NO EXHAUST WATER - NO PISTON - NO TOO MANY MOVING PARTS
  • Comes with 3.5", 200m Premium Quality German Made Drag Hose
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCuriser Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
  • DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
  • The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
  • The turbine’s RPM and travelling speed is read on accurate digital tachometers.
  • No Filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

Operation Illustration

technical table

Technical Specifications of DuCaR Green 150 Sprinkler Head



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
14 0,55 2,5 37 24 79 220 13,2 58 1808 0,45 7,3
14 0,55 3 44 26 85 233,3 14 62 2122 0,52 6,6
14 0,55 4 56 29 95 270 16,2 71 2640 0,65 6,1
16 0,62 2 29 26 85 241,7 14,5 64 2122 0,52 6,8
16 0,62 3 44 29 95 296,7 17,8 78 2640 0,65 6,7
16 0,62 4 56 31 100 341,7 20,5 90 2920 0,72 7,0
16 0,62 5 70 33 108 386,7 23,2 102 3419 0,84 6,8
18 0,70 3 44 32 105 375 22,5 99 3215 0,79 7,0
18 0,70 4 56 35 115 438,3 26,3 116 3846 0,95 6,8
18 0,70 5 70 37 121 470 28,2 124 4298 1,06 6,6
18 0,70 6 85 40 131 521,7 31,3 138 5024 1,24 6,2
20 0,78 3 44 35 115 445 26,7 118 2846 0,95 6,9
20 0,78 4 56 37 121 536,7 32,2 142 4298 1,06 7,5
20 0,78 5 70 42 138 591,7 35,5 156 5538 1,37 6,4
22 0,86 3 44 35 115 556,7 33,4 147 3846 0,95 8,7
22 0,86 4 56 37 121 641,7 38,5 170 4298 1,06 9,0
22 0,86 5 70 40 131 716,7 43 189 5024 1,24 8,6
22 0,86 6 85 42 138 786,7 47,2 208 5538 1,37 8,5
24 0,94 4 56 43 141 771,7 46,3 204 5805 1,43 8,0
24 0,94 5 70 45 148 801,7 48,1 212 6358 1,57 7,6
24 0,94 6 85 47 154 885 53,1 234 6936 1,71 7,7
24 0,94 7 100 50 164 950 57 251 7850 1,94 7,3
