Picture of IrriCruiser COMFORT Travelling Irrigator Picture of IrriCruiser COMFORT Travelling Irrigator

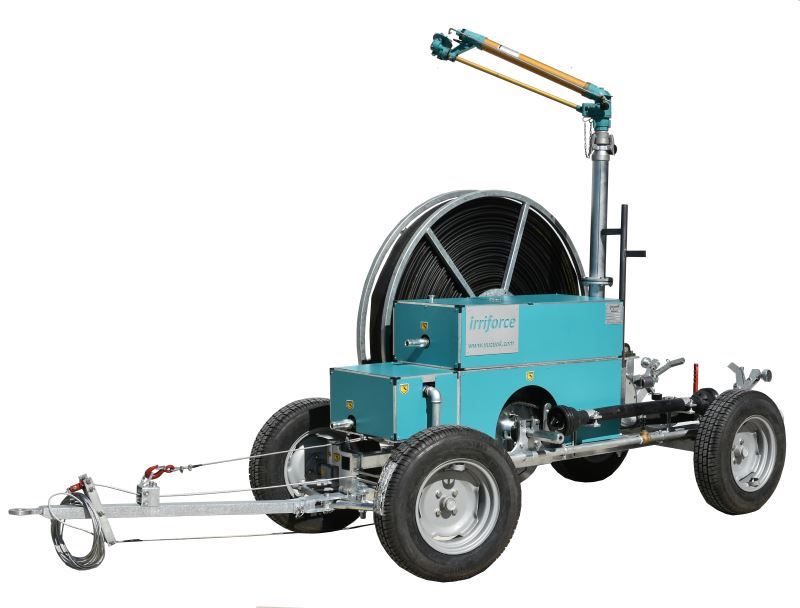

IrriCruiser COMFORT Travelling Irrigator

Run Length : 300 - 400 m
Drag Hose Size : 2.5" or 3"
Sprinkler : DuCaR JET 55
Effective Spray Width : 50M - 70M
Flow Rate : 383 - 665 l/min
Required Pressure Rate : 60 - 90 psi
Traveller Speed : 10 - 70 m/hour
Weight : 550 kg
Standard Equipment : Manual Brake system, High Efficiency Water Turbine, PTO Driven Purge Pump, Galvanized Main Body with Powder Coating paint
SKU: TD3000-250
Manufacturer: DuCaR
Be the first to review this product

DuCaR IrriCruiser COMFORT - New Generation Travelling Irrigator

Applications

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Fully hot dip galvanised chassis and hose reels – stainless frame
  • Travel shut-off mechanism
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
  • 3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control: Extremely wide rangeof speed for any crop and application.
  • Manual brake system
  • Travel speed tachometer
  • Cable Drum Rewind Handle for easy cable retrieval on an aborted run and to take up slack cable prior to start-up.
  • PTO Driven Hose reel
  • Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Compact Concept: Provides great mobility.
  • Extendible wheel bars: Provide stability and make the IrriCruiser suitable for narrow paths
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCuriser Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
  • DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
  • The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
  • No Filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

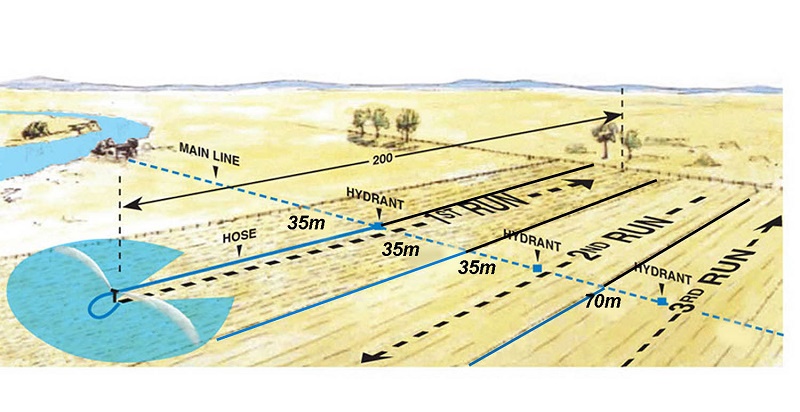

Operation Illustration

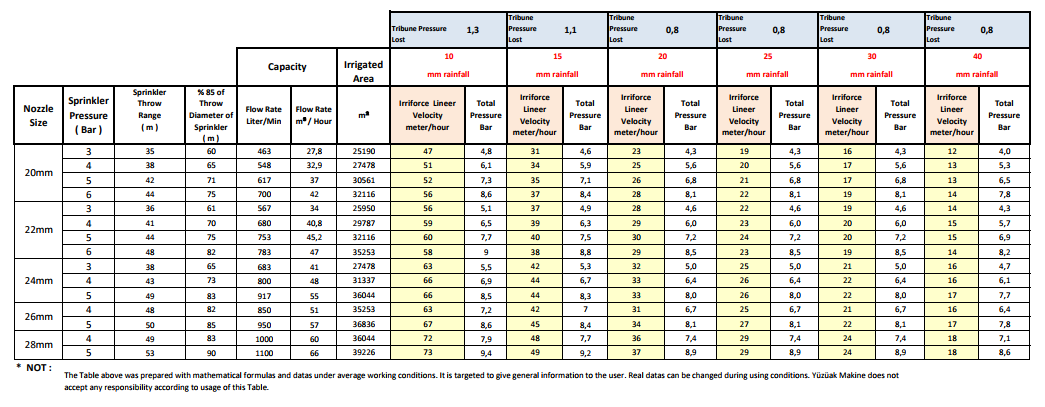

technical table

Technical Specifications of DuCaR JET 50T Sprinkler Head

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
14 0,55 2,5 37 24 79 220 13,2 58 1808 0,45 7,3
14 0,55 3 44 26 85 233,3 14 62 2122 0,52 6,6
14 0,55 4 56 29 95 270 16,2 71 2640 0,65 6,1
16 0,62 2 29 26 85 241,7 14,5 64 2122 0,52 6,8
16 0,62 3 44 29 95 296,7 17,8 78 2640 0,65 6,7
16 0,62 4 56 31 100 341,7 20,5 90 2920 0,72 7,0
16 0,62 5 70 33 108 386,7 23,2 102 3419 0,84 6,8
18 0,70 3 44 32 105 375 22,5 99 3215 0,79 7,0
18 0,70 4 56 35 115 438,3 26,3 116 3846 0,95 6,8
18 0,70 5 70 37 121 470 28,2 124 4298 1,06 6,6
18 0,70 6 85 40 131 521,7 31,3 138 5024 1,24 6,2
20 0,78 3 44 35 115 445 26,7 118 2846 0,95 6,9
20 0,78 4 56 37 121 536,7 32,2 142 4298 1,06 7,5
20 0,78 5 70 42 138 591,7 35,5 156 5538 1,37 6,4
22 0,86 3 44 35 115 556,7 33,4 147 3846 0,95 8,7
22 0,86 4 56 37 121 641,7 38,5 170 4298 1,06 9,0
22 0,86 5 70 40 131 716,7 43 189 5024 1,24 8,6
22 0,86 6 85 42 138 786,7 47,2 208 5538 1,37 8,5
24 0,94 4 56 43 141 771,7 46,3 204 5805 1,43 8,0
24 0,94 5 70 45 148 801,7 48,1 212 6358 1,57 7,6
24 0,94 6 85 47 154 885 53,1 234 6936 1,71 7,7
24 0,94 7 100 50 164 950 57 251 7850 1,94 7,3

DuCaR IrriCruiser COMFORT - New Generation Travelling Irrigator

Applications

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Fully hot dip galvanised chassis and hose reels – stainless frame
  • Travel shut-off mechanism
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
  • 3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control: Extremely wide rangeof speed for any crop and application.
  • Manual brake system
  • Travel speed tachometer
  • Cable Drum Rewind Handle for easy cable retrieval on an aborted run and to take up slack cable prior to start-up.
  • PTO Driven Hose reel
  • Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Compact Concept: Provides great mobility.
  • Extendible wheel bars: Provide stability and make the IrriCruiser suitable for narrow paths
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCuriser Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
  • DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
  • The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
  • No Filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

Operation Illustration

technical table

Technical Specifications of DuCaR JET 50T Sprinkler Head

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
14 0,55 2,5 37 24 79 220 13,2 58 1808 0,45 7,3
14 0,55 3 44 26 85 233,3 14 62 2122 0,52 6,6
14 0,55 4 56 29 95 270 16,2 71 2640 0,65 6,1
16 0,62 2 29 26 85 241,7 14,5 64 2122 0,52 6,8
16 0,62 3 44 29 95 296,7 17,8 78 2640 0,65 6,7
16 0,62 4 56 31 100 341,7 20,5 90 2920 0,72 7,0
16 0,62 5 70 33 108 386,7 23,2 102 3419 0,84 6,8
18 0,70 3 44 32 105 375 22,5 99 3215 0,79 7,0
18 0,70 4 56 35 115 438,3 26,3 116 3846 0,95 6,8
18 0,70 5 70 37 121 470 28,2 124 4298 1,06 6,6
18 0,70 6 85 40 131 521,7 31,3 138 5024 1,24 6,2
20 0,78 3 44 35 115 445 26,7 118 2846 0,95 6,9
20 0,78 4 56 37 121 536,7 32,2 142 4298 1,06 7,5
20 0,78 5 70 42 138 591,7 35,5 156 5538 1,37 6,4
22 0,86 3 44 35 115 556,7 33,4 147 3846 0,95 8,7
22 0,86 4 56 37 121 641,7 38,5 170 4298 1,06 9,0
22 0,86 5 70 40 131 716,7 43 189 5024 1,24 8,6
22 0,86 6 85 42 138 786,7 47,2 208 5538 1,37 8,5
24 0,94 4 56 43 141 771,7 46,3 204 5805 1,43 8,0
24 0,94 5 70 45 148 801,7 48,1 212 6358 1,57 7,6
24 0,94 6 85 47 154 885 53,1 234 6936 1,71 7,7
24 0,94 7 100 50 164 950 57 251 7850 1,94 7,3
