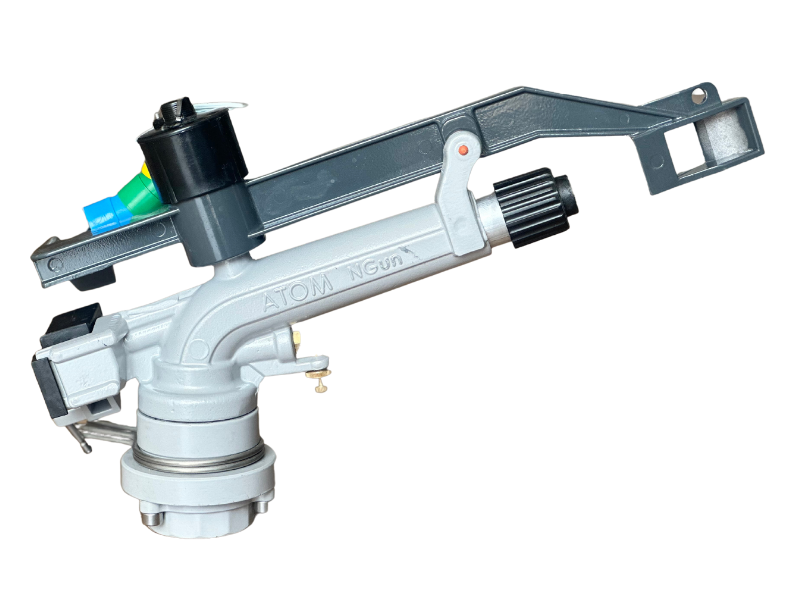

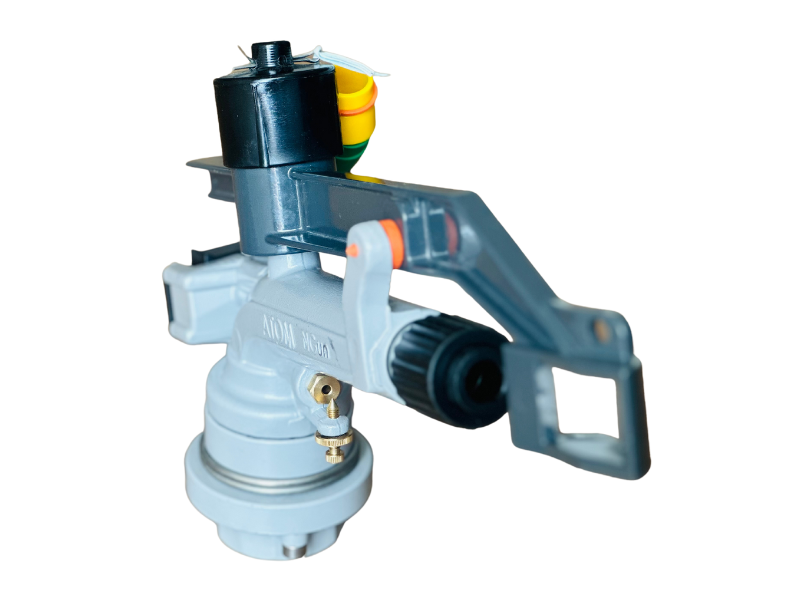

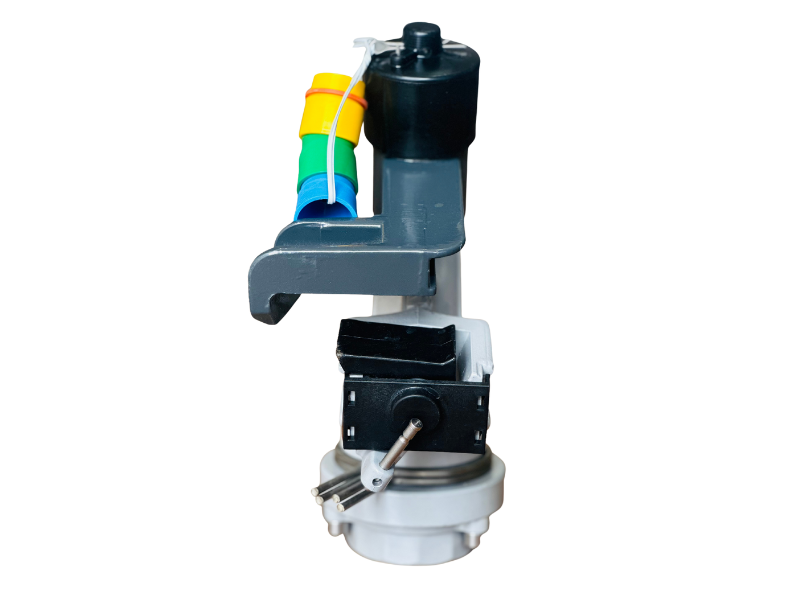

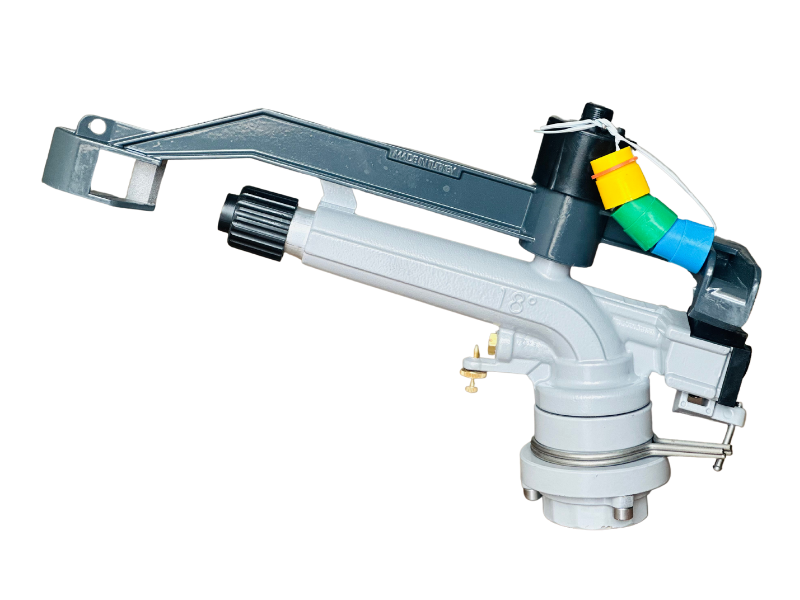

DuCaR Atom NGun

SKU: NGUN40

Manufacturer: DuCaR

DuCar Atom NGun

We guarantee 100% satisfaction!

It is designed to be used as END GUN on pivot systems.

Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	1.75	25	19,0	62	183	11	48	1134	0.28	9.7
14	0.55	2	29	21.0	69	207	12.4	55	1385	0.34	9.0
14	0.55	2.5	37	22.0	72	232	13.9	61	1520	0.38	9.1
14	0.55	3	44	24.0	79	243	14.6	64	1809	0.45	8.1
16	0.62	2	29	23.0	75	252	15.1	66	1661	0.41	9.1
16	0.62	2.5	37	24.0	79	278	16.7	74	1809	0.45	9.2
16	0.62	3	44	25.0	82	303	18.2	80	1963	0.48	9.3
16	0.62	4	56	27.0	89	350	21	92	2289	0.57	9.1
18	0.70	2.5	37	25.0	82	363	21.8	96	1963	0.48	11.1
18	0.70	3	44	27.0	89	383	23	101	2289	0.57	10.0
18	0.70	4	56	28.0	92	450	27	119	2462	0.61	11.0
18	0.70	4.5	65	31.0	102	483	29	128	3018	0.75	9.6
20	0.78	3	44	27.0	89	376	24	106	2289	0.57	10.5
20	0.78	4	56	31.0	102	460	28.2	124	3018	0.75	9.3
20	0.78	4.5	65	33.0	108	532	33	145	3419	0.84	9.7

DuCar Atom NGun

We guarantee 100% satisfaction!

It is designed to be used as END GUN on pivot systems.

Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	1.75	25	19,0	62	183	11	48	1134	0.28	9.7
14	0.55	2	29	21.0	69	207	12.4	55	1385	0.34	9.0
14	0.55	2.5	37	22.0	72	232	13.9	61	1520	0.38	9.1
14	0.55	3	44	24.0	79	243	14.6	64	1809	0.45	8.1
16	0.62	2	29	23.0	75	252	15.1	66	1661	0.41	9.1
16	0.62	2.5	37	24.0	79	278	16.7	74	1809	0.45	9.2
16	0.62	3	44	25.0	82	303	18.2	80	1963	0.48	9.3
16	0.62	4	56	27.0	89	350	21	92	2289	0.57	9.1
18	0.70	2.5	37	25.0	82	363	21.8	96	1963	0.48	11.1
18	0.70	3	44	27.0	89	383	23	101	2289	0.57	10.0
18	0.70	4	56	28.0	92	450	27	119	2462	0.61	11.0
18	0.70	4.5	65	31.0	102	483	29	128	3018	0.75	9.6
20	0.78	3	44	27.0	89	376	24	106	2289	0.57	10.5
20	0.78	4	56	31.0	102	460	28.2	124	3018	0.75	9.3
20	0.78	4.5	65	33.0	108	532	33	145	3419	0.84	9.7
