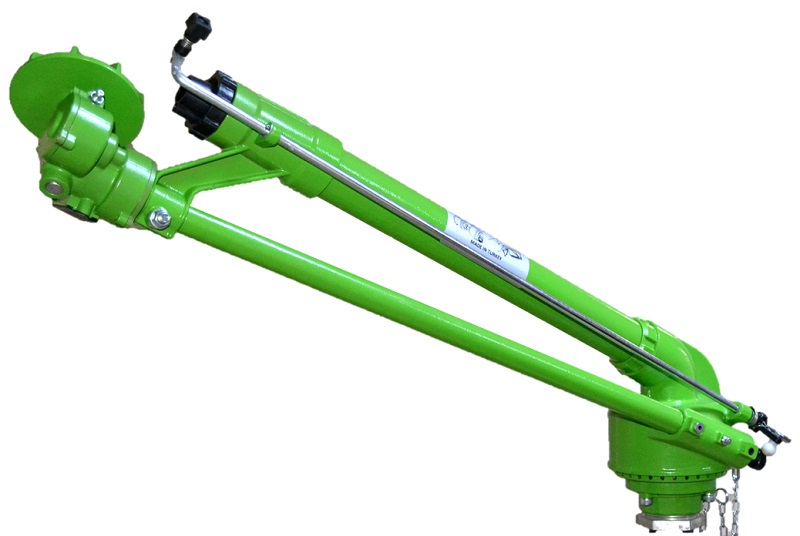

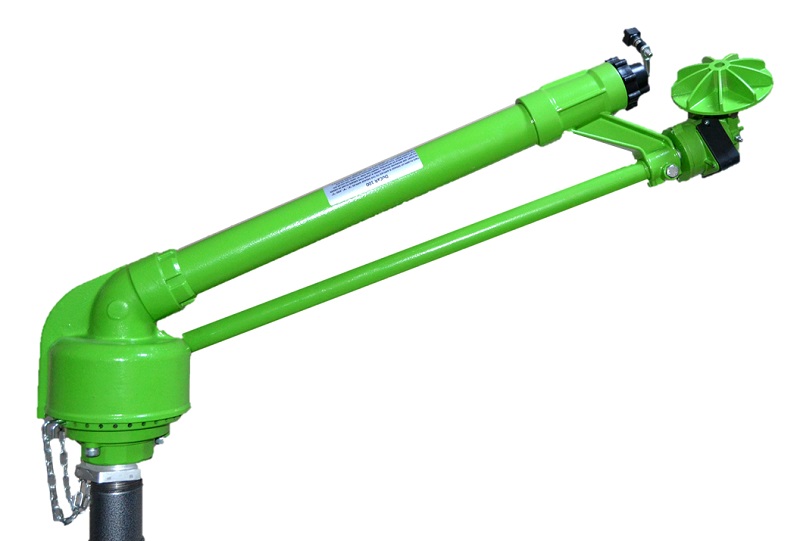

DuCaR Green 100

Water Input : 2"
Working Pressure : 3 - 7 atm
Water Requirement : 27 - 76 m³
Knockers : 14, 16, 18, 20, 22, 24, 26, 28 mm
Body Angle : 27°
Box Dimension : 22x22x86 cm
Weight : 8 kg
Shooting Range : 34 - 53 m
SKU: GRN100
Manufacturer: DuCaR

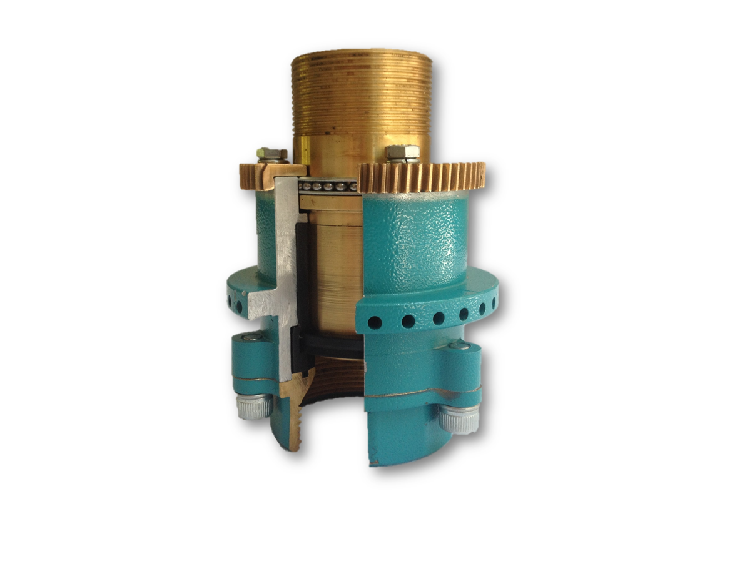

  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.
Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity
mminchatmpsimfeetl/minm3/hG.P.M
14 0.55 3 44 29 95 246.67 14.8 65
14 0.55 4 56 32 105 286.67 17.2 76
14 0.55 5 70 34 112 315 18.9 83
16 0.62 3 44 30 98 308.33 18.5 81
16 0.62 4 56 34 112 358.33 21.5 95
16 0.62 5 70 35 115 391.67 23.5 103
18 0.7 3 44 32 105 390 23.4 103
18 0.7 4 56 35 115 445 26.7 118
18 0.7 5 70 37 121 498.33 29.9 132
20
(2 Hole)
0.78 3 45 34 112 450 27 119
20
(2 Hole)
0.78 4 56 37 121 525 31.5 139
20
(2 Hole)
0.78 5 70 40 131 600 36 159
22
(2 Hole)
0.86 4 56 37 121 633 38 167
22
(2 Hole)
0.86 5 70 40 131 700 42 185
22
(2 Hole)
0.86 6 85 43 141 733 44 194
24
(2 Hole)
0.94 4 56 38 125 666 40 176
24
(2 Hole)
0.94 5 70 41 134 750 45 198
24
(2 Hole)
0.94 6 85 43 141 800 48 211
26 1 4 56 43 141 833.3 50 220
26 1 5 70 45 148 950 57 251
26 1 6 85 48 157 1050 63 277
28 1.1 5 70 47 154 1100 66 291
28 1.1 6 85 50 164 1200 72 317
28 1.1 7 100 53 174 1266.7 76 335
  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.
Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity
mminchatmpsimfeetl/minm3/hG.P.M
14 0.55 3 44 29 95 246.67 14.8 65
14 0.55 4 56 32 105 286.67 17.2 76
14 0.55 5 70 34 112 315 18.9 83
16 0.62 3 44 30 98 308.33 18.5 81
16 0.62 4 56 34 112 358.33 21.5 95
16 0.62 5 70 35 115 391.67 23.5 103
18 0.7 3 44 32 105 390 23.4 103
18 0.7 4 56 35 115 445 26.7 118
18 0.7 5 70 37 121 498.33 29.9 132
20
(2 Hole)
0.78 3 45 34 112 450 27 119
20
(2 Hole)
0.78 4 56 37 121 525 31.5 139
20
(2 Hole)
0.78 5 70 40 131 600 36 159
22
(2 Hole)
0.86 4 56 37 121 633 38 167
22
(2 Hole)
0.86 5 70 40 131 700 42 185
22
(2 Hole)
0.86 6 85 43 141 733 44 194
24
(2 Hole)
0.94 4 56 38 125 666 40 176
24
(2 Hole)
0.94 5 70 41 134 750 45 198
24
(2 Hole)
0.94 6 85 43 141 800 48 211
26 1 4 56 43 141 833.3 50 220
26 1 5 70 45 148 950 57 251
26 1 6 85 48 157 1050 63 277
28 1.1 5 70 47 154 1100 66 291
28 1.1 6 85 50 164 1200 72 317
28 1.1 7 100 53 174 1266.7 76 335
Products specifications
Body Angle
Water Input
Working Pressure
Water Requirement 27 - 76 m³
Knockers
Box Dimension
Weight
Minimum Shooting Range 34 m
Maximum Shooting Range 53 m
Free Quick Coupling
DuCaR Gear Drive Type Sprinklers
