Picture of DuCaR Atom 15 PC Low Flow Picture of DuCaR Atom 15 PC Low Flow

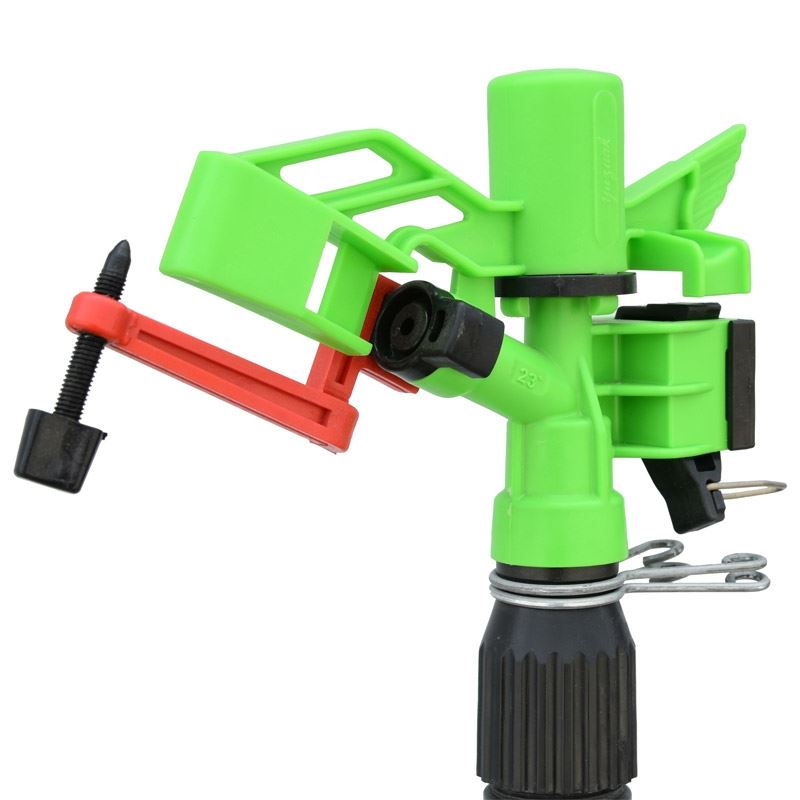

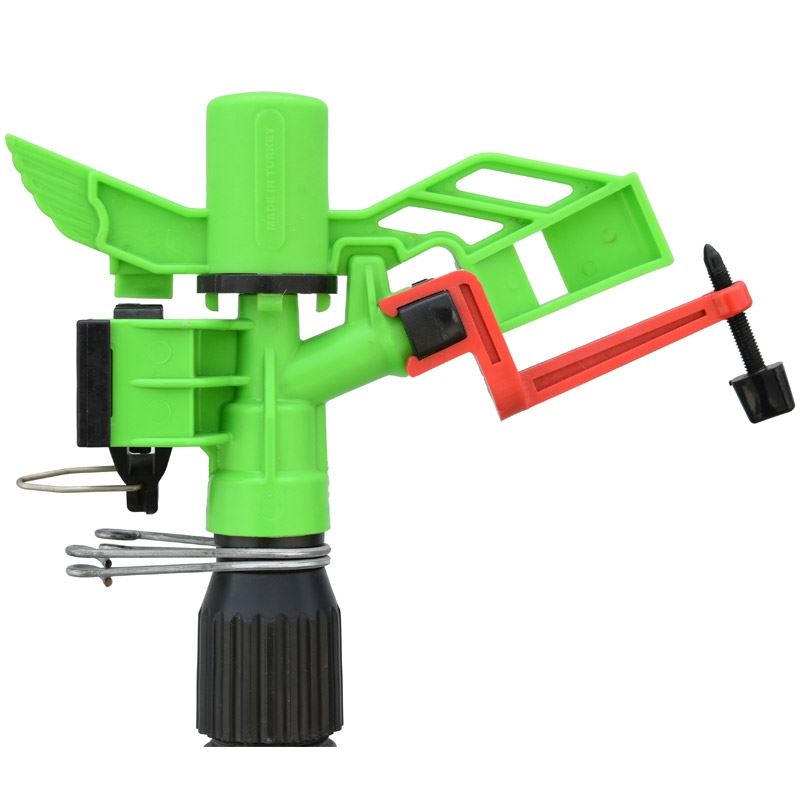

DuCaR Atom 15 PC Low Flow

Water Input : 1"
Working Pressure : 2 - 4.5 atm
Water Requirement : 0.9 - 1.72 m³
Knockers : 4.0 - 4.5 - 5.0 mm
Body Angle : 23°
Box Dimension : 0.190 cm X 0.175 cm
Weight : 0.25 kg
Shooting Range : 13 - 16 m
Circle : Full & Part Circle (FC & PC)
SKU: Atom15PC-LF
Delivery date: 3-5 business days
Manufacturer: DuCaR
Be the first to review this product

The Atom 15 PC LOW FLOW sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a low flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It has a 1" female pastic BSP threaded inlet and comes with 4.5 mm (black) nozzle.



Technical Specifications (DuCaR Atom 15 PC LOW FLOW)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4.0 ● 2.0 29 13.0 43 15 0.9 4.0 531 0.13 1.7
4.0 ● 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4.0 ● 3.0 43 14.2 47 17.5 105 4.6 633 0.16 1.7
4.0 ● 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 ● 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 ● 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 ● 3.0 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 ● 3.5 50 15.0 49 23.3 1.40 6.2 707 0.17 2.0
5.0 ● 2.0 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5.0 ● 2.5 36 15.0 49 24.3 1.46 6.4 707 0.17 2.1
5.0 ● 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5.0 ● 3.5 50 16.0 52 28.7 1.72 7.6 804 0.20 2.1

The Atom 15 PC LOW FLOW sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a low flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It has a 1" female pastic BSP threaded inlet and comes with 4.5 mm (black) nozzle.



Technical Specifications (DuCaR Atom 15 PC LOW FLOW)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
4.0 ● 2.0 29 13.0 43 15 0.9 4.0 531 0.13 1.7
4.0 ● 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4.0 ● 3.0 43 14.2 47 17.5 105 4.6 633 0.16 1.7
4.0 ● 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 ● 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 ● 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 ● 3.0 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 ● 3.5 50 15.0 49 23.3 1.40 6.2 707 0.17 2.0
5.0 ● 2.0 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5.0 ● 2.5 36 15.0 49 24.3 1.46 6.4 707 0.17 2.1
5.0 ● 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5.0 ● 3.5 50 16.0 52 28.7 1.72 7.6 804 0.20 2.1
